รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MTG-5

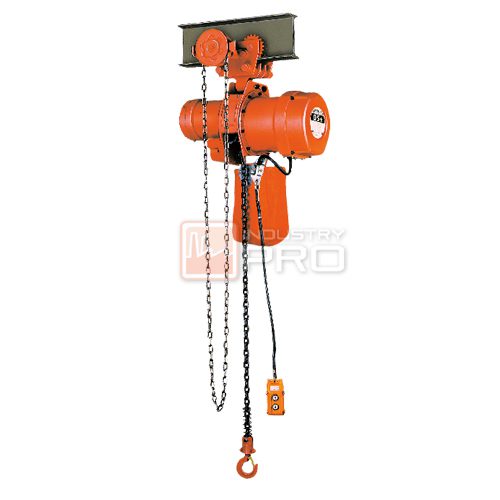

Geared Trolley Type Two-Speed Electric Chain Hoist
Features
- With a geared trolley coupled with the MHT-5 two-speed electric chain hoist, the MTG-5 allows an operator to move the load in a traversing direction simply by pulling a hand chain. It is suited for use in an environment where swinging of a load must be avoided or where two-speed lifting is required for pinpoint positioning.
Specifications for Geared Trolley Type Two-Speed Electric Chain Hoist MTG-5
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | |||||||
| High | Low | |||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| m/sec | m/min | m/sec | m/min | m/sec | m/min | m/sec | m/min | |||
| MTG5005 | 0.5 | 4 | 0.133 | 8 | 0.157 | 9.4 | 0.032 | 1.9 | 0.037 | 2.2 |
| MTG5010 | 1 | 0.072 | 4.3 | 0.083 | 5 | 0.017 | 1 | 0.02 | 1.2 | |
| MTG5020 | 2 | 0.08 | 4.8 | 0.093 | 5.6 | 0.02 | 1.2 | 0.023 | 1.4 | |
| MTG5025 | 2.5 | 0.063 | 3.8 | 0.073 | 4.4 | 0.017 | 1 | 0.018 | 1.1 | |
| MTG5050 | 5 | 0.032 | 1.9 | 0.037 | 2.2 | 0.008 | 0.5 | 0.01 | 0.6 | |
| Item no. | Rated load (t) | Motor output (kW) | Motor insulation class | Rated time | Load chain | Power cable length (m) | |||||
| High | Low | (min) | Diameter | No. of falls | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | High | Low | ||||||
| MTG5005 | 0.5 | 0.83 | 1 | 0.21 | 0.25 | B | 20 | 20 | 7.1 | 1 | 5 |
| MTG5010 | 1 | ||||||||||
| MTG5020 | 2 | 1.83 | 2.2 | 0.46 | 0.55 | 11.2 | |||||
| MTG5025 | 2.5 | ||||||||||
| MTG5050 | 5 | 2 | |||||||||
| Item no. | Rated load (t) | Push-button switch cord length S (m) | Test load (t) | Traversing rail width b (mm) | Min. curve radius (m) | Min. headroom G (mm) | Hook mass (kg) |
| MTG5005 | 0.5 | 3.6 | 0.625 | 75,100,125 | 1 | 515 | 0.7 |
| MTG5010 | 1 | 1.25 | 525 | 0.9 | |||
| MTG5020 | 2 | 3.8 | 2.5 | 100,125,150 | 1.2 | 710 | 2.3 |
| MTG5025 | 2.5 | 3.125 | 1.5 | 770 | 3.5 | ||
| MTG5050 | 5 | 6.25 | 125,150,175 | 955 | 13.5 |
| Item no. | Rated load (t) | External dimensions (mm) | ||||||||||
| A | B | D | E | F | H | I | J | K | L | M | ||
| MTG5005 | 0.5 | 305 | 285 | 152 | 106 | 20 | b/2+189 | 105 | 110 | 206 | 24-t2 | b-42 |
| MTG5010 | 1 | 25 | ||||||||||
| MTG5020 | 2 | 365 | 335 | 195 | 127 | 30 | b/2+150 | 127 | 140 | 262 | 28-t2 | b-63 |
| MTG5025 | 2.5 | 36 | 132 | 160 | 306 | 27-t2 | ||||||
| MTG5050 | 5 | 247 | 93 | 43 | b/2+339 | 166 | 172 | 329 | 35-t2 | b-76 | ||
| Item no. | Rated load (t) | External dimensions (mm) | Hand chain length ℓ(m) | Traversing distance achieved by pulling hand chain 1m (mm) | Net weight* (kg) | ||||
| N | P* | Q* | T | U | |||||
| MTG5005 | 0.5 | φ62 | 760 | 220 | 72+t2 | 80+t2 | 4 | 229 | 73 |
| MTG5010 | 1 | 75 | |||||||
| MTG5020 | 2 | φ83 | 845 | 235 | 115+t2 | 102+t2 | 138 | 129 | |
| MTG5025 | 2.5 | φ107 | 885 | 118+t2 | 126+t2 | 146 | 142 | ||
| MTG5050 | 5 | φ110 | 990 | 290 | 130+t2 | 134+t2 | 4.3 | 134 | 188 |
Notes:
- Specifications are subject to change for improvements without notice.
- An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
