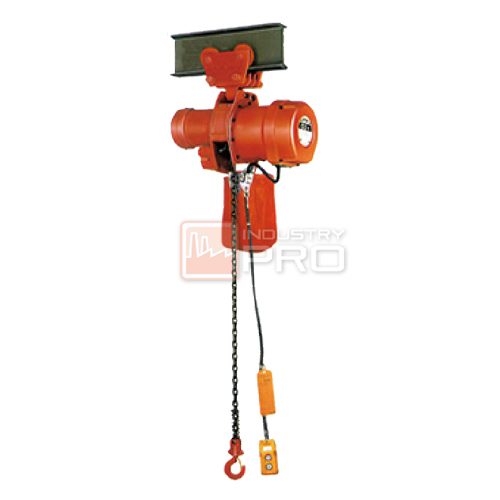

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MCP-5
Features
- With a plain trolley coupled with the MHC-5 single-phase electric chain hoist, the MCP-5, which runs on home power supply, can be moved manually in a traversing direction simply by pushing the load.
Specifications for Plain Trolley Type Single-Phase Electric Chain Hoist MCP-5
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | Motor output (kW) | Rated time (min) | Load chain | ||||
| 50Hz | 60Hz | Diameter | No. of falls | |||||||
| m/sec | m/min | m/sec | m/min | |||||||
| MCP5005 | 0.5 | 4 | 0.09 | 5.4 | 0.107 | 6.4 | 0.62 | 15 | 7.1 | 1 |
| MCP5010 | 1 | 0.045 | 2.7 | 0.053 | 3.2 | |||||
| Item no. | Rated load (t) | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | Traversing rail width b (mm) | Min. curve radius (m) | Min. headroom G (mm) | Net weight* (kg) |
| MCP5005 | 0.5 | 5 | 3.6 | 0.625 | #### | 1 | 515 | 66 |
| MCP5010 | 1 | 1.25 | 525 |
| Item no. | Rated load (t) | Hook mass (kg) | External dimensions (mm) | |||||||
| A | B | D | E | F | H | I | J | |||
| MCP5005 | 0.5 | 0.7 | 305 | 285 | 152 | 106 | 20 | 105 | 105 | 110 |
| MCP5010 | 1 | 0.9 | 25 | |||||||
| Item no. | Rated load (t) | External dimensions (mm) | ||||||
| K | L | M | N | P* | Q* | U | ||
| MCP5005 | 0.5 | 206 | 24-t2 | b-42 | φ62 | 655 | 220 | 80+t2 |
| MCP5010 | 1 | |||||||
Notes:
- Specifications are subject to change for improvements without notice.
- An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
