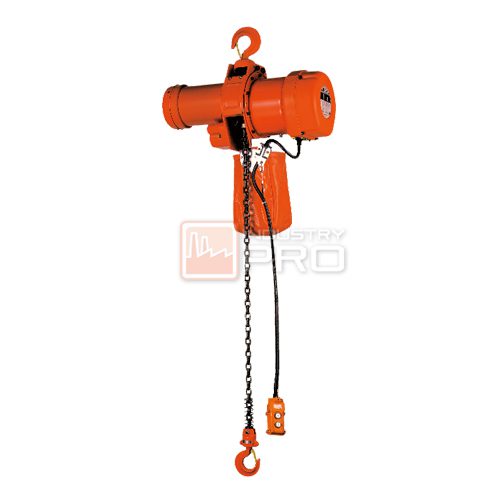

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI MH5
FEATURES
- The heavy-duty MH-5 can be used in various work environments.
- A wide array of optional items is available for the MH-5, including an overload protection unit, rustproof chains, a radio unit, and an inverter.
MAIN APPLICATIONS
- Hazardous work environments
- Outdoor work (Rainproof model is optional.)
- Work over extended periods
- Jobs requiring long lifting distances (Please contact us for details.)
Specifications for Electric Chain Hoist MH-5
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | Motor output (kW) | Motor insulation class | Rated time (min) | ||||
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| (m/sec) | (m/min) | (m/sec) | (m/min) | |||||||
| MH5005 | 0.5 | 4 | 0.143 | 8.6 | 0.167 | 10 | 0.83 | 1 | B | 30 |
| MH5010 | 1 | 0.103 | 6.2 | 0.122 | 7.3 | 1.17 | 1.4 | |||
| MH5020 | 2 | 0.112 | 6.7 | 0.132 | 7.9 | 2.5 | 3 | |||
| MH5030 | 3 | 0.073 | 4.4 | 0.087 | 5.2 | |||||
| MH5050 | 5 | 0.043 | 2.6 | 0.052 | 3.1 | |||||
| MH5100S | 10 | 0.022 | 1.3 | 0.027 | 1.6 | |||||
| (single | ||||||||||
| suspension) | ||||||||||
| MH5100W | 10 | 0.043 | 2.6 | 0.052 | 3.1 | 2.5×2 | 3.0×2 | |||
| (double | ||||||||||
| suspension) | ||||||||||
| MH5150 | 15 | 0.028 | 1.7 | 0.035 | 2.1 | |||||
| MH5200 | 20 | 0.022 | 1.3 | 0.027 | 1.6 | |||||
| Item no. | Rated load (t) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | Min. headroom G (mm) | Net weight* (kg) | |
| Diameter | No. of falls | |||||||
| MH5005 | 0.5 | 7.1 | 1 | 5 | 3.6 | 0.625 | 550 | 53 |
| MH5010 | 1 | 1.25 | 560 | 55 | ||||
| MH5020 | 2 | 11.2 | 3.8 | 2.5 | 725 | 100 | ||
| MH5030 | 3 | 3.75 | 765 | 102 | ||||
| MH5050 | 5 | 2 | 6.25 | 925 | 130 | |||
| MH5100S | 10 | 4 | 4 | 12.5 | 1,170 | 225 | ||
| (single | ||||||||
| suspension) | ||||||||
| MH5100W | 10 | 1,150 | 305 | |||||
| (double | ||||||||
| suspension) | ||||||||
| MH5150 | 15 | 6 | 4.3 | 18.75 | 1,300 | 415 | ||
| MH5200 | 20 | 8 | 4.5 | 25 | 1,440 | 520 | ||
| Item no. | Rated load (t) | Hook mass (kg) | External dimensions (mm) | ||||||
| A | B | D | E | F | P* | Q* | |||
| MH5005 | 0.5 | 0.7 | 265 | 285 | 152 | 106 | 20 | 690 | 220 |
| MH5010 | 1 | 0.9 | 285 | 25 | |||||
| MH5020 | 2 | 2.3 | 335 | 335 | 195 | 127 | 30 | 860 | 235 |
| MH5030 | 3 | 3.5 | 36 | 880 | |||||
| MH5050 | 5 | 13.5 | 247 | 93 | 43 | 960 | 290 | ||
| MH5100S | 10 | 37 | 370 | 245 | 65 | 1,330 | 440 | ||
| (single | |||||||||
| suspension) | |||||||||
| MH5100W | 10 | 370 | 1,120 | 410 | |||||
| (double | |||||||||
| suspension) | |||||||||
| MH5150 | 15 | 77 | 500 | 500 | 79 | 1,300 | 520 | ||
| MH5200 | 20 | 110 | 590 | 590 | 1,410 | 610 | |||
Notes:
- Specifications are subject to change for improvements without notice.
- An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
