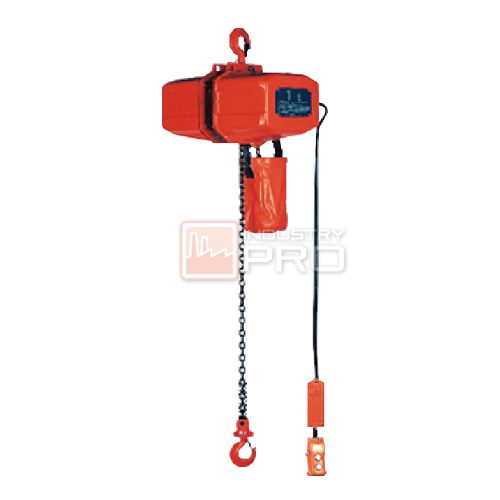

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI EC4
Suspension Type Electric Chain Hoist (3-phase 200 V)
- This hook hoist is operated by a two-button (up/down) switch.
- The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
- The standard lift is 3 m and 6 m. Longer lifts are available upon request.
- The length of a standard power cable is 5 m. Please consult us for cables with different lengths.
| tem no. | Rated load | Standard lift (m) | Hoisting speed m/sec (m/min) | Motor output (kW) | Rated time (min) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | |||
| 50Hz | 60Hz | 50Hz | 60Hz | Diameter | No. of falls | ||||||
| EC40025 | 250kg | 3 | 0.145 | 0.172 | 0.4 | 0.5 | 30 | 6.3 | 1 | 5 | 2.6 |
| 6 | -8.7 | -10.3 | 5.6 | ||||||||
| EC40050 | 500kg | 3 | 0.143 | 0.168 | 0.9 | 1.1 | 2.6 | ||||
| 6 | -8.6 | -10.1 | 5.6 | ||||||||
| ECJ40100 | 1tw | 3 | 0.072 | 0.083 | 2 | 2.6 | |||||
| 6 | -4.3 | -5 | 5.6 | ||||||||
| EC40100 | 1t | 3 | 0.093 | 0.11 | 1.1 | 1.3 | 7.1 | 1 | 2.6 | ||
| 6 | -5.6 | -6.6 | 5.6 | ||||||||
| ECJ40200 | 2t | 3 | 0.047 | 0.055 | 2 | 2.6 | |||||
| 6 | -2.8 | -3.3 | 5.6 | ||||||||
| Item no. | Min. headroom G (mm) | Net weight* (kg) | Hook mass (kg) | External dimensions (mm) | ||||||
| A | B | D | E | F | P* | Q* | ||||
| EC40025 | 485 | 35 | 0.7 | 245 | 245 | 137 | 149 | 20 | 660 | 195 |
| 38 | ||||||||||
| EC40050 | 520 | 37 | ||||||||
| 41 | ||||||||||
| ECJ40100 | 660 | 43 | 2.4 | 167 | 118 | 25 | 715 | 225 | ||
| 49 | 835 | |||||||||
| EC40100 | 570 | 49 | 0.9 | 255 | 255 | 150 | 168 | 710 | 200 | |
| 52 | ||||||||||
| ECJ40200 | 755 | 58 | 5 | 191 | 127 | 30 | 770 | 240 | ||
| 65 | 890 | |||||||||
Notes:
- Figures marked with an asterisk (*) are based on the standard lift.
- Specifications are subject to change for improvements without notice.
