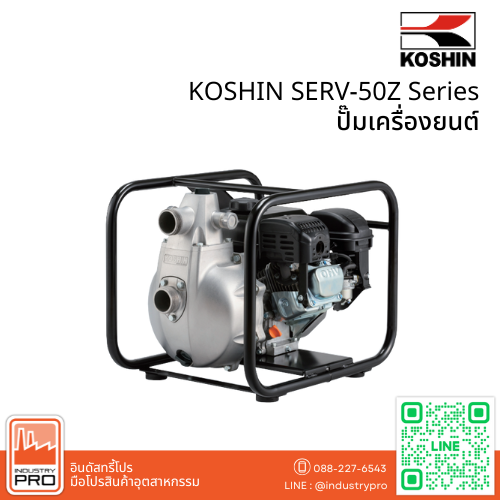

KOSHIN SERV-50Z Series ปั๊มเครื่องยนต์
คุณสมบัติ
- ปั้มน้ำสำหรับงานดับเพลิง
- สามารถเป็นปั๊มที่ไว้ส่งน้ำขึ้นภูเขาได้
- ระบบสปริงเกอร์ ใบพัดทำจากเหล็กหล่อให้ความแข็งแรงและความทนทานสูง
- ใช้ในงานเกษตรกรรม หรืองานสวน
- งานล้าง ทำความสะอาด อุปกรณ์การเกษตร
Performance Curve
SPECIFICATIONS
| Product category | Self-priming, Centrifugal pump | ||
|---|---|---|---|
| Product name | SERV-50Z | ||
| Model name | SERV-50Z-BAA | ||
| Pump | Connectiondia | Suction | 50mm(2”) |
| Connection thread | Outer pipe thread BSP( North America model: NPT for 2” and BSP for 1”) | ||
| Total head | 90 m (295 ft) | ||
| Discharge volume | 480 L/min (126 USG/min) | ||
| Max. suction head | 8 m (26 ft) | ||
| Engine | Type | Forced Air-cooled 4-stroke Gasoline Engine | |
| Model | K210 High min-1 | ||
| Displacement | 212 cm3 | ||
| Rated output | 4.4 kW (6.0 PS)(5.9 HP)/ 4400 min-1 | ||
| Max. output | 4.9 kW (6.7 PS) (6.6 HP) / 4000 min-1 | ||
| Fuel | Automotive Unleaded Gasoline | ||
| Fuel tank capacity | Tank size : 3.3 L (0.87 USG), Usage level : 3.0 L (0.79 USG) | ||
| Engine oil | 4-stroke engine oil : API grade SE or above, SAE 10W-30 | ||
| Engine oil capacity | 0.6 L (0.15 USG) | ||
| Continuous operating time | Approx. 1.2 hrs | ||
| Starting method | Recoil starter | ||
| Applicable liquids | Consistency | Clear water | |
| Suspended solid percentage | ? | ||
| Max. solids size | ? | ||
| Temperature | 5-45 °C (41-113°F) | ||
| Accessories | 1 Strainer, 3 Hose bands (φ60), 2 Hose bands (φ32), 1 Coupling sets (50mm), 1 Closing plate (50mm), 2 Nipple (25mm), 1 Quick coupling (50mm), 1 Engine tool<br />(North America:1 Coupling sets 50mm), 1 Closing plate (50mm), 2 Nipple 25mm), 1 Engine tool) | ||
| Net weight | 33.9 kg (74.7 lbs) | ||
| Gross weight | 37.5kg (82.7 lbs)(North America:36.2 kg (79.8 lbs)) | ||
| Product dimensions L x W x H | 550 mm x 435 mm x 457 mm | ||
| Packing dimensions L x W x H | 570 mm×450 mm×468 mm | ||
