| Model |
KOSHIN SEV-50X |

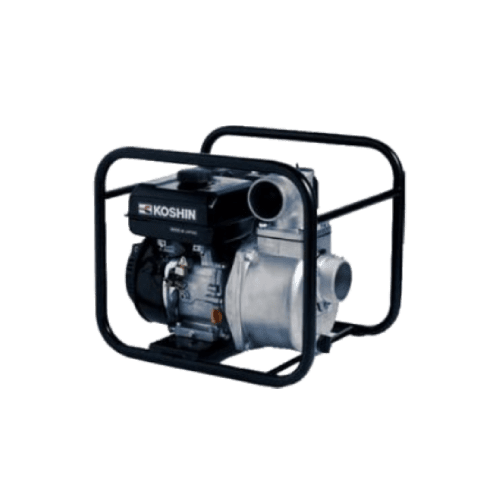

KOSHIN SEV-80X |
KOSHIN SEV-25L |
| Pump |
Connection Dia |
50 mm (2″) |
80 mm (3″) |
25 mm (1″) |
| Connection Thread |
Outer Pipe Thread BSP |

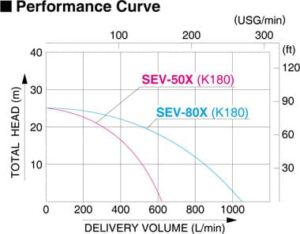

| Total Head |
27 m (90 ft) |
32 m (105 ft) |
| Delivery Volume |
620 L/min (163 USG/min) |
1050 L/min (277 USG/min) |
110 L/min (29 USG/min) |
| Max. Suction Head |
8 m (26 ft) |
| Engine |
Type |
Forced Air-cooled 4-stroke Gasoline Engine |
Forced Air-cooled 2-stroke Gasoline Engine |
| Model |
Koshin K180 |
Koshin KC26 |
| Exhaust Volume |
179 cc |
26 cc |
| Rated Output |
3.1 kW (4.2 PS) / 3600 rpm |
0.70 kW (0.93 PS) / 7500 rpm |
| Fuel |
Automotive Unleaded Gasoline |
2 Stroke Mixed Gas and Oil (50:1) |
| Fuel Tank Capacity |
3.6 L (0.95 USG) |
0.6 L (0.16 USG) |
| Continuous Oparating Time |
Approx. 2.6 hrs |
Approx. 2.4 hrs |
Approx. 50 min |
| Starting Method |
Recoil Starter |
Recoil Starter |
| Standard Accessories |
1 Strainer, 3 Hose Bands, 1 Engine Tool Set |
1 Strainer, 2 Hose Couplings, 3 Hose Bands |
| Gross Weight |
27.2 kg (59.9 lbs) |
30.7 kg (67.6 lbs) |
7.7 kg (16.9 lbs) |
| Dimensions LxWxH (mm) |
504 × 401 × 411 |
543 × 426 × 458 |
368 × 273 × 338 |
| Packing Unit |
1 |
