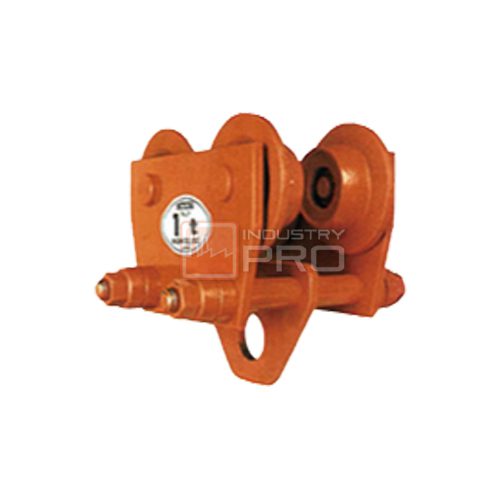

ขาแขวนรอก Trolley NICHI PT-5
FEATURES
- Besides its use lowering the chain hoist, the PT-5 can be used as a stand-alone trolley. The plain trolley can be easily pushed along the rails by hand.
- Smooth running
The wheel for each load uses ball bearings that reduce running resistance and ensure freedom from maintenance.
- Trolley width can be adjusted to one of three different sizes by changing the collar.
- The wheels are made so that they can run along either I-beams or H-beams.
Specifications for PT-5 Plain Trolle
| Item no. | Rated load (t) | Trolley rail (I-beam) (mm) | Min. Curve radius (mm) | Test load (t) | External dimensions (mm) | |||||
| K | L | M | R | S | U | |||||
| PT5005 | 0.5 | 125×75×5.5×9.5 | 800 | 0.75 | 195 | 23-t2 | b-43 | 94-t2 | 32 | 72+t2 |
| 180×100×6×10 | ||||||||||
| 250×125×7.5×12.5 | ||||||||||
| PT5010 | 1 | 150×75×5.5×9.5 | 1,000 | 1.5 | 206 | 25-t2 | b-42 | 99-t2 | 35 | 78+t2 |
| 180×100×6×10 | ||||||||||
| PT5015 | 1.6 | 250×125×7.5×12.5 | 1,100 | 2.4 | 221 | 32-t2 | b-41 | 108-t2 | 40 | 85+t2 |
| PT5020 | 2 | 200×100×7×10 | 1,200 | 3 | 262 | 31-t2 | b-63 | 130-t2 | 45 | 102+t2 |
| 250×125×7.5×12.5 | ||||||||||
| 300×150×8×13 | ||||||||||
| PT5030 | 3.2 | 200×100×7×10 | 1,500 | 4.8 | 306 | 32-t2 | 56 | 126+t2 | ||
| 250×125×10×19 | ||||||||||
| 300×150×11.5×22 | ||||||||||
| PT5050 | 5 | 250×125×10×19 | 7.5 | 329 | 37-t2 | b-76 | 152-t2 | 65 | 132+t2 | |
| 300×150×11.5×22 | ||||||||||
| 450×175×11×20 | ||||||||||
