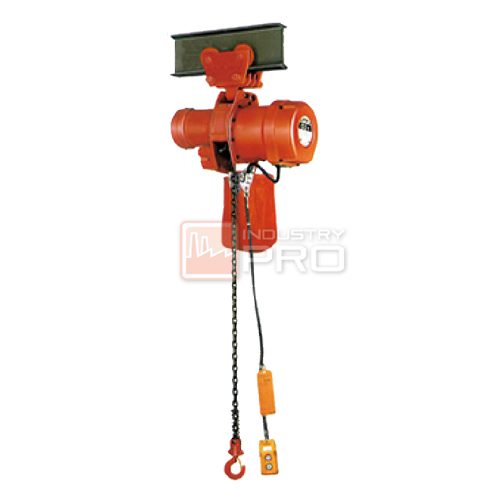

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MHP-5
FEATURES
- With a plain trolley coupled with the MH-5, the MHP-5 allows an operator to manually push the load in a traversing direction. It is an affordable model and is suited for applications that do not require heavy-duty operations.
Specifications for Plain Trolley Type Electric Chain Hoist MHP-5
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | Motor output (kW) | Motor insulation class | Rated time (min) | ||||
| 50Hz | 60Hz | |||||||||
| (m/sec) | (m/min) | (m/sec) | (m/min) | 50Hz | 60Hz | |||||
| MHP5005 | 0.5 | 4 | 0.143 | 8.6 | 0.167 | 10 | 0.83 | 1 | B | 30 |
| MHP5010 | 1 | 0.103 | 6.2 | 0.122 | 7.3 | 1.17 | 1.4 | |||
| MHP5020 | 2 | 0.112 | 6.7 | 0.132 | 7.9 | 2.5 | 3 | |||
| MHP5030 | 3 | 0.073 | 4.4 | 0.087 | 5.2 | |||||
| MHP5050 | 5 | 0.043 | 2.6 | 0.052 | 3.1 | |||||
| Item no. | Rated load (t) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | Test load (t) | Traversing rail width b (mm) | Min. curve radius (m) | Min. headroom G (mm) | |
| Diameter | No. of falls | ||||||||
| MHP5005 | 0.5 | 7.1 | 1 | 5 | 3.6 | 0.625 | 75,100,125 | 1 | 515 |
| MHP5010 | 1 | 1.25 | 525 | ||||||
| MHP5020 | 2 | 11.2 | 3.8 | 2.5 | 100,125,150 | 1.2 | 710 | ||
| MHP5030 | 3 | 3.75 | 1.5 | 770 | |||||
| MHP5050 | 5 | 2 | 6.25 | 125,150,175 | 955 | ||||

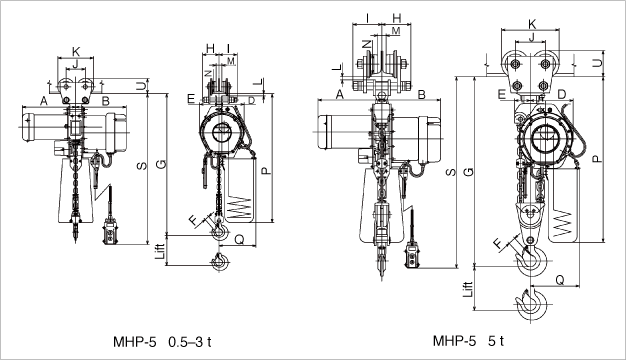

| Item no. | Rated load | Hook mass (kg) | External dimensions (mm) | ||||||||
| (t) | A | B | D | E | F | J | K | L | M | ||
| MHP5005 | 0.5 | 0.7 | 265 | 285 | 152 | 106 | 20 | 110 | 206 | 24-t2 | b-42 |
| MHP5010 | 1 | 0.9 | 285 | 25 | |||||||
| MHP5020 | 2 | 2.3 | 335 | 335 | 195 | 127 | 30 | 140 | 262 | 28-t2 | b-63 |
| MHP5030 | 3 | 3.5 | 36 | 160 | 306 | 27-t2 | |||||
| MHP5050 | 5 | 13.5 | 247 | 93 | 43 | 172 | 329 | 35-t2 | b-76 | ||
| Item no. | Rated load (t) | External dimensions (mm) | Net weight* (kg) | ||||
| N | P* | Q* | U | H · I | |||
| MHP5005 | 0.5 | φ62 | 655 | 220 | 80+t2 | 105 | 61 |
| MHP5010 | 1 | 105 | 63 | ||||
| MHP5020 | 2 | φ83 | 845 | 235 | 102+t2 | 127 | 116 |
| MHP5030 | 3 | φ107 | 885 | 126+t2 | 133 | 130 | |
| MHP5050 | 5 | φ110 | 990 | 290 | 134+t2 | 166 | 175 |
Notes:
- Specifications are subject to change for improvements without notice.
- An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
