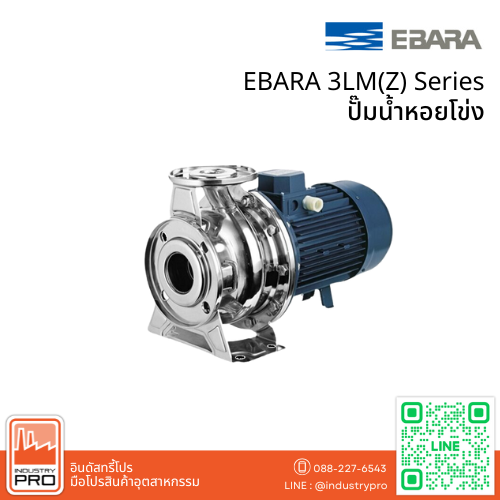

EBARA 3LM(Z) Series ปั๊มน้ำหอยโข่ง
BARA รุ่น 3LM(Z) Series เป็นปั๊มน้ำหอยโข่งที่ออกแบบมาเพื่อตอบโจทย์การใช้งานที่หลากหลาย เช่น ระบบน้ำดื่ม, ระบบน้ำบำบัด, การชลประทาน, และ การสูบจ่ายน้ำในอุตสาหกรรม ปั๊มรุ่นนี้สามารถทนทานต่อ สารเคมีที่มีฤทธิ์กัดกร่อนเล็กน้อย พร้อมทั้งมี ระบบป้องกันการรั่วซึมที่ดีเยี่ยม ทำให้มั่นใจในความเสถียรของการทำงานในระยะยาว
คุณสมบัติ
- ใบพัดแบบปิดสามมิติ ช่วยเพิ่มประสิทธิภาพในการไหลของน้ำ
- วัสดุทนทาน AISI 316L ทนทานต่อการกัดกร่อนและเหมาะสำหรับใช้งานในสภาพแวดล้อมที่ท้าทาย
- การออกแบบที่ช่วยลดการรั่วไหล เพิ่มความทนทานและเสถียรภาพในการใช้งาน
- รองรับน้ำสะอาดและสารเคมีที่มีฤทธิ์กัดกร่อนเล็กน้อย เหมาะสำหรับการใช้งานในอุตสาหกรรมต่างๆ
- ระบบป้องกันการรั่วซึมที่มีประสิทธิภาพสูง ช่วยเพิ่มประสิทธิภาพการทำงานและลดการสูญเสียพลังงาน
EBARA รุ่น 3LM(Z) Series เป็นตัวเลือกที่เหมาะสมสำหรับ การสูบจ่ายน้ำในระบบอุตสาหกรรมและการบำบัดน้ำ โดยเน้นการใช้งานที่ต้องการความทนทานสูงและระบบป้องกันการรั่วซึมที่มีประสิทธิภาพ
SPECIFICATIONS
| PUMP | |||||
|---|---|---|---|---|---|
| Version | 3LM(Z) | ||||
| Liquid Handled | Type of liquid | Clean water and moderately aggressive fluids | |||
| Drinking water and water contains glycol for E and ES version | |||||
| Temperature [°C] | min. -10 max. +120 For full details see section “FLUID TEMPERATURE RANGE” on pag.333 |
||||
| Maximum working pressure [MPa] | 1 | ||||
| Construction | Impeller | Closed centrifugal type for 32, 40, 50 version Reinforced laser welding for 40-200/11, 50-200/15 Closed centrifugal three dimensional blades for 65 and 80 version |
|||
| Shaft seal type | Mechanical seal with stationary ring secured against rotation | ||||
| Bearing | Sealed ball bearing | ||||
| Pipe Connection | Suction | 32-125/160/200 | Flange DN50 according EN1092-1 Standard | ||
| 40-125/160/200 50-125/160/200 |
Flange DN65 according EN1092-1 Standard | ||||
| 65-125/160/200/250 | Flange DN80 according EN1092-1 Standard | ||||
| 80-160/200/250 | Flange DN100 according EN1092-1 Standard | ||||
| Discharge | 32-125/160/200 | Flange DN32 according EN1092-1 Standard | |||
| 40-125/160/200 | Flange DN40 according EN1092-1 Standard | ||||
| 50-125/160/200 | Flange DN50 according EN1092-1 Standard | ||||
| 65-125/160/200/250 | Flange DN65 according EN1092-1 Standard | ||||
| 80-160/200/250 | Flange DN80 according EN1092-1 Standard | ||||
| Material | Casing | 32-125/160/200 40-125/160/200 50-125/160/200 65-125/160/200 |
EN 1.4404 (AISI 316L) | ||
| 65-250 80-160/200/250 |
CF8M – EN 1.4408 (AISI 316) | ||||
| Impeller | 32-125/160/200 40-125/160/200 50-125/160/200 |
EN 1.4404 (AISI 316L) | |||
| 65-125/160/200 | CF8M – EN 1.4408 (AISI 316) | ||||
| 65-250 80-160/200/250 |
CF8M – EN 1.4408 (AISI 316) | ||||
| Casing cover | 32-125/160/200 40-125/160/200 50-125/160/200 65-125/160/200 |
EN 1.4404 (AISI 316L) | |||
| 65-250 80-160/200/250 |
CF8M – EN 1.4408 (AISI 316) | ||||
| Mechanical seal | 32-125/160/200 40-125/160/200 50-125/160/200 65-125/160/200 |
SiC/SiC/FPM (L version) | |||
| 65-250 80-160/200 |
|||||
| 80-250 | SiC/Carbon/EPDM (ES version) [2] | ||||
| O-ring | FPM [3] | ||||
| Shaft | 32, 40, 50, 65-125 65-160/11 |
d=19 | EN 1.4404 (AISI 316L) | ||
| 50-200/15 | d=22 | ||||
| 65-160/15 65-200 |
d=24 | ||||
| 65-250 | d=24 | EN 1.4462 (Duplex stainless steel) | |||
| 80-160 | d=24 | EN 1.4404 (AISI 316L) | |||
| 80-200/22 | d=24 | ||||
| 80-200/30-37 | d=24 | EN 1.4462 (Duplex stainless steel) | |||
| 80-250 | d=29 | ||||
| Bracket | Cast iron – Aluminium | ||||
| Applicable standard of test | ISO 9906:2012 – Grade 3B | ||||
| MOTOR | |||
|---|---|---|---|
| Type | 3(.)M(Z) | ||
| Electric – TEFC | |||
| Single Phase | Three Phase | ||
| Efficiency level (Reg. 1781/2019) | IE2 | IE3 | |
| No. of Poles | 2 | ||
| Rotation speed [min-1] | ≈ 2900 | ||
| Insulation Class | F | ||
| Protection degree (CEI EN 60034-5) | IP 55 | ||
| Power rating | [kW] | 1.1 ÷ 2.2 | 1.1 ÷ 22 |
| [HP] | 1.5 ÷ 3.0 | 1.5 ÷ 30 | |
| Frequency [Hz] | 50 | ||
| Voltage [V] | 230 ±10% | 230/400 ±10% (up to 4.0 kW) 400/690 ±10% (5.5 kW and above) |
|
| Over load protection | Provided by the user | ||
| Casing material | Aluminium | ||
| Motor support | Cast iron – Alluminium | ||
| Dimensions of cable entry | M20x1.5 | PG13.5 PG16 PG21 | |
| M20x1.5, M25x1.5 | |||
| Flange mount (IEC motor) | / | ||
Performance
Selection Chart
3 SERIES: 32, 40, 50 Version
| Pump type | l/min 0 | 100 | 150 | 200 | 300 | 333 | 360 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | 1200 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| m³/h 0 | 6 | 9 | 12 | 18 | 20 | 22 | 24 | 27 | 30 | 36 | 42 | 48 | 60 | 72 | |||||||||||||||
| 32-125/1.1(M) * | 22.5 | 21 | 19.9 | 18.4 | 14.1 | 12 | – | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-160/1.5(M) * | 29.5 | 28 | 26.5 | 24.5 | 19.2 | 17 | – | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-160/2.2(M) * | 37 | 35.5 | 34 | 32 | 27 | 25 | – | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-200/3.0 | 44 | 42 | 40 | 37.5 | 31 | 28 | – | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-200/4.0 | 55 | 53.5 | 52 | 49.5 | 43.5 | 40.5 | 38 | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-200/5.5 | 70.5 | 69 | 67.5 | 65 | 58.5 | – | – | – | – | – | – | – | – | – | – | ||||||||||||||
| 32-200/7.5 | 70.5 | 69 | 67.5 | 65 | 58.5 | 55.5 | 53 | 49 | 44 | – | – | – | – | – | – | ||||||||||||||
| 40-125/1.5(M) * | 20 | – | – | 19 | 17.6 | 17 | 16.5 | 15.7 | 14.5 | 13.2 | 10.3 | 7 | – | – | – | ||||||||||||||
| 40-125/2.2(M) * | 26.5 | – | – | 25.5 | 24 | 23.5 | 23 | 22 | 21 | 19.5 | 16.4 | 13 | – | – | – | ||||||||||||||
| 40-160/3.0 | 31 | – | – | 29.5 | 27.5 | 27 | 26.5 | 25.5 | 24 | 22.5 | 20 | 17 | – | – | – | ||||||||||||||
| 40-160/4.0 | 40 | – | – | 38.5 | 37 | 36 | 35.5 | 34.5 | 33 | 32 | 29 | 25.5 | – | – | – | ||||||||||||||
| 40-200/5.5 | 47 | – | – | 45.5 | 44 | 43 | 42.5 | 41 | 39.5 | 38 | 35 | 31 | – | – | – | ||||||||||||||
| 40-200/7.5 | 58 | – | – | 57 | 55.5 | 55 | 54.5 | 53.5 | 52.5 | 51 | 47.5 | 44 | – | – | – | ||||||||||||||
| 40-200/11 | 72 | – | – | 71 | 70 | 70 | 69.5 | 68.5 | 67.5 | 66 | 63 | 59 | – | – | – | ||||||||||||||
| 50-125/2.2(M) * | 19 | – | – | – | – | – | – | 17.5 | 17 | 16.3 | 14.9 | 13.4 | 11.7 | 8 | – | ||||||||||||||
| 50-125/3.0 | 22,7 | – | – | – | – | – | – | 21,7 | 21,4 | 21 | 19,9 | 18,5 | 16,9 | 13,3 | 9,5 | ||||||||||||||
| 50-125/4.0 | 26.5 | – | – | – | – | – | – | 26 | 25.5 | 25 | 24 | 22.5 | 21.5 | 17.9 | 14 | ||||||||||||||
| 50-160/5.5 | 33 | – | – | – | – | – | – | 31 | 30.5 | 30 | 28.5 | 27 | 25.5 | 22 | 18 | ||||||||||||||
| 50-160/7.5 | 40 | – | – | – | – | – | – | 38.5 | 38 | 37.5 | 36 | 35 | 33.5 | 30 | 26 | ||||||||||||||
| 50-200/9.2 | 53 | – | – | – | – | – | – | – | – | 50 | 49 | 47.5 | 45.5 | 40.5 | 34 | ||||||||||||||
| 50-200/11 | 59 | – | – | – | – | – | – | – | – | 56 | 55 | 54 | 52 | 48 | 42 | ||||||||||||||
| 50-200/15 | 72 | – | – | – | – | – | – | – | – | 70 | 69 | 68 | 66 | 62 | 57 | ||||||||||||||
* Single phase version only for 3M type
3 SERIES: 65, 80 Version
| Pump type | l/min 0 | 600 | 700 | 900 | 1300 | 1500 | 1700 | 1900 | 2100 | 2200 | 2300 | 2400 | 2500 | 3000 | 3400 | 3600 | 3800 | 4000 | |||||||||||
| m³/h 0 | 36 | 42 | 54 | 78 | 90 | 102 | 114 | 126 | 132 | 138 | 144 | 150 | 180 | 204 | 216 | 228 | 240 | ||||||||||||
| 65-125/4.0 | 22.2 | 19.8 | 19 | 17.3 | 13.3 | 11 | 8,6 | 6.3 | – | – | – | – | – | – | – | – | – | – | |||||||||||
| 65-125/5.5 | 27 | – | 24 | 22.2 | 18 | 15.7 | 13.3 | 10.8 | 8 | – | – | – | – | – | – | – | – | – | |||||||||||
| 65-125/7.5 | 32 | – | 29.5 | 27.8 | 23.5 | 21.1 | 18.7 | 16.1 | 13.4 | 12 | – | – | – | – | – | – | – | – | |||||||||||
| 65-160/7.5 | 32 | – | 30 | 28.6 | 24.8 | 22.5 | 19.9 | 17.1 | 14.2 | – | – | – | – | – | – | – | – | – | |||||||||||
| 65-160/9.2 | 36.5 | – | 34.5 | 32.8 | 28.8 | 26.5 | 23.9 | 21.1 | 18.3 | 16.8 | – | – | – | – | – | – | – | – | |||||||||||
| 65-160/11 | 40.5 | – | 38.5 | 37.1 | 33.1 | 30.9 | 28.4 | 25.8 | 23 | 21.5 | 20 | – | – | – | – | – | – | – | |||||||||||
| 65-160/15 | 48 | – | 45.5 | 44 | 40 | 37.8 | 35.3 | 32.6 | 29.6 | 28 | 26.5 | – | – | – | – | – | – | – | |||||||||||
| 65-200/15 | 53.5 | – | 51 | 49 | 44 | 41.5 | 38.4 | 35.3 | 31.8 | 30 | – | – | – | – | – | – | – | – | |||||||||||
| 65-200/18.5 | 60.5 | – | 58.5 | 56.5 | 51.5 | 49 | 46 | 43 | 39.7 | 38 | 36.3 | – | – | – | – | – | – | – | |||||||||||
| 65-200/22 | 67 | – | 65.5 | 64 | 59.5 | 57 | 54 | 51 | 48 | 46.5 | 45 | – | – | – | – | – | – | – | |||||||||||
| 65-250/30 | 78 | – | – | 77 | 73.5 | 71 | 68 | 64.5 | 60 | 57.5 | 55 | 52 | – | – | – | – | – | – | |||||||||||
| 65-250/37 | 89 | – | – | 88 | 85.5 | 83 | 80.5 | 77.5 | 74 | 72 | 70 | 67.5 | 65 | – | – | – | – | – | |||||||||||
| 80-160/11 | 29 | – | – | – | 27.3 | 26.4 | 25.4 | 24.2 | 23 | 22.4 | 21.8 | 21.1 | 20.4 | 16.4 | 12.5 | – | – | – | |||||||||||
| 80-160/15R | 32 | – | – | – | 30.5 | 29.7 | 28.8 | 27.7 | 26.5 | 25.9 | 25.3 | 24.6 | 24 | 20.1 | 16.5 | 14.5 | – | – | |||||||||||
| 80-160/15 | 35 | – | – | – | 34 | 33.3 | 32.5 | 31.5 | 30.5 | 30 | 29.4 | 28.8 | 28.1 | 24.4 | 21 | 19.1 | 17 | – | |||||||||||
| 80-160/18.5 | 40 | – | – | – | 39 | 38.4 | 37.6 | 36.7 | 35.7 | 35.2 | 34.7 | 34.1 | 33.5 | 30 | 26.4 | 24.4 | 22.3 | 20 | |||||||||||
| 80-200/22 | 50 | – | – | – | 48 | 47 | 45.5 | 44.5 | 43 | 42 | 41 | 40 | 39 | 33.2 | 27.8 | 25 | – | – | |||||||||||
| 80-200/30 | 60 | – | – | – | 58.5 | 58 | 57 | 56 | 54.5 | 54 | 53 | 52 | 51 | 46.5 | 41.5 | 39 | 36.1 | 33 | |||||||||||
| 80-200/37 | 66 | – | – | – | 64 | 63 | 62 | 61 | 59.5 | 59 | 58 | 57.5 | 56.5 | 51.5 | 47 | 44.5 | 41.5 | 38.5 | |||||||||||
| 80-250/37 | 73 | – | – | – | 71.5 | 70.5 | 68.5 | 66.5 | 64 | 63 | 61.5 | 60 | 58.5 | 48.5 | 38 | – | – | – | |||||||||||
| 80-250/45 | 84 | – | – | – | 82.5 | 81.5 | 80 | 78 | 76 | 75 | 73.5 | 72.5 | 71 | 62 | 53 | 48 | 42.5 | – | |||||||||||
| 80-250/55 | 95 | – | – | – | 93.5 | 92.5 | 91.5 | 90 | 88.5 | 87.5 | 86.5 | 85.5 | 84 | 76.5 | 68.5 | 64.5 | 60 | 55 | |||||||||||
