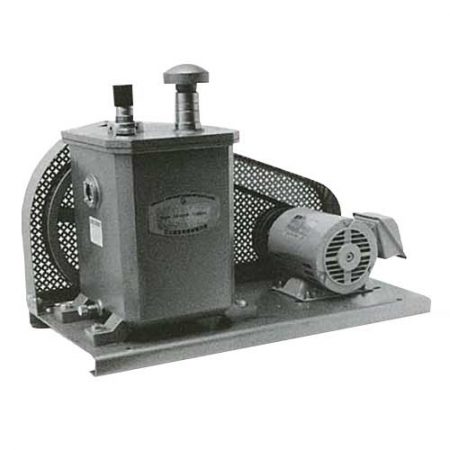

ปั๊มสุญญกาศระบบ Rotary vane OP รุ่น CV Series
คุณสมบัติ
- ใช้น้ำมันในการหล่อลื่น
- ขนาดกะทัดรัด โครงสร้าง แข็งแรง ทนทาน
- ง่ายต่อการดูแลรักษา
- ทำงานเสียงเงียบ การสั่นสะเทือนต่ำ
Specifications Vacuum Pump Rotary Vane OP CV/CVD Series
| Model | OP CV-0N(E) | OP CV-1N(E) | OP CV-2(E) | OP CV-3NII(E) | OP CVD-1 | OP CVD-2 | OP CVD-3 | |
| Free Air Displacement | l/min | 25 | 60 | 150 | 350 | 60 | 180 | 360 |
| Pump Speed | min-1 | 850 | 770 | 690 | 600 | 600 | 600 | 600 |
| Motor | kW | 0.1 | 0.2 | 0.4 | 0.75 | 0.2 | 0.4 | 0.75 |
| Ultimate Pressure | Pa | 1.1 | 1.1 | 1.1 | 1.1 | 0.067 | 0.067 | 0.067 |
| E Type | 670 | 670 | 670 | 13 | ||||
| Intake Connection | mm | 7 | 11 | 12 | 24.5 | 22 | 28 | 28 |
| Oil Capacity | l | 0.6 | 1.6 | 2.9 | 7 | 0.9 | 1.6 | 2.3 |
| Weight (Pump Only) | kg | 3.2 | 7.6 | 14 | 33.6 | 15 | 26 | 29 |
| E Type | 3.2 | 7.9 | 14.6 | 36.7 | ||||
| Weight With Motor | kg | 12 | 20 | 30 | 60 | 27 | 41 | 51 |
| E Type | 12 | 20 | 30 | 60 | ||||
| Motor Pulley | 50/60 Hz | 65/54 | 89/69 | 89/76 | 127/102 | 60.5/50.5 | 63.8/51 | 76.8/63 |
| V-Belt | M1 | A1 | A1 | A2 | M1 | A1 | A1 | |
DIMENSION Vacuum Pump Rotary Vane OP CV/CVD Series
Pump Only Dimensions (Unit mm.)
| Model | A | B | C | D | E | F | G | H |
| OP CV-0N (E) | 140 | 164 | 119 | 106 | 105Ø | 56 | 190 (215) | 8Ø |
| OP CV-1N (1E) | 180 | 224 | 152 | 138 | 156Ø | 95 | 273 (295) | 9Ø |
| OP CV-2 (E) | 240 | 257 | 210 | 114 | 190Ø | 106 | 340 (375) | 9Ø |
| OP CV-3NII (E) | 306 | 335 | 266 | 160 | 284Ø | 152 | 435 (470) | 10Ø |
| OP CVD-1 | 160 | 235 | 135 | 95 | 149Ø | 85 | 225 | 10Ø |
| OP CVD-2 | 220 | 270 | 190 | 100 | 152Ø | 95 | 278 | 10Ø |
| OP CVD-3 | 220 | 346 | 190 | 135 | 172Ø | 111 | 294 | 10Ø |
With Common Bed Dimensions (Unit mm.)
| Model | A | B | C | D | E | F |
| OP CV-0NB (E) | 310 | 215 | 230(255) | 200 | 190 | 9Ø |
| OP CV-1NB (1E) | 450 | 275 | 308(330) | 250 | 240 | 9Ø |
| OP CV-2B (E) | 500 | 315 | 375(410) | 300 | 270 | 9Ø |
| OP CV-3NIIB (E) | 665 | 340 | 470(505) | 535 | 308 | 11Ø |
| OP CVD-1B | 453 | 245 | 250 | 370 | 160 | 10Ø |
| OP CVD-2B | 538 | 284 | 313 | 445 | 190 | 12Ø |
| OP CVD-3B | 548 | 361 | 329 | 455 | 230 | 12Ø |
