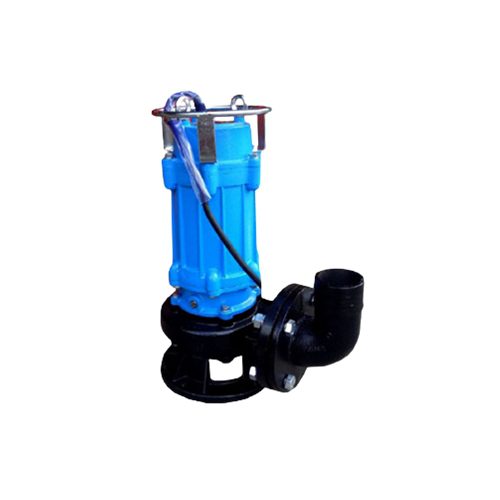

ปั๊มจุ่ม ZUZUMI WQ Series
SPECIFICATION
| รุ่น | ขนาด | กำลัง (Kw) |
ส่งสูง (m.) |
ปริมาณน้ำ (m²/h) |
ความเร็วรอบ (r/min) |
| WQ9-22-2.2 | 2″ | 2.2 | 22 | 9 | 2860 |
| WQ25-7-1.5 | 3″ | 1.5 | 7 | 25 | 2860 |
| WQ45-9-2.2 | 3″ | 2.2 | 9 | 45 | 2860 |
| WQ40-16-3 | 3″ | 3 | 16 | 40 | 2860 |
| WQ30-26-4 | 3″ | 4 | 26 | 30 | 2860 |
| WQ45-22-7.5 | 3″ | 7.5 | 22 | 45 | 2860 |
| WQ50-7-3 | 4″ | 3 | 7 | 50 | 2860 |
| WQ60-10-4 | 4″ | 4 | 10 | 60 | 2860 |
| WQ65-20-7.5 | 4″ | 7.5 | 20 | 65 | 2860 |
| WQ80-20-7.5 | 4″ | 7.5 | 20 | 80 | 2860 |
| WQ100-12-7.5 | 6″ | 7.5 | 12 | 100 | 2860 |
| WQ145-9-7.5 | 6″ | 7.5 | 9 | 145 | 2860 |
| WQ300-7-11 | 8″ | 11 | 7 | 300 | 2860 |
| WQ250-11-15 | 8″ | 15 | 11 | 250 | 2860 |
