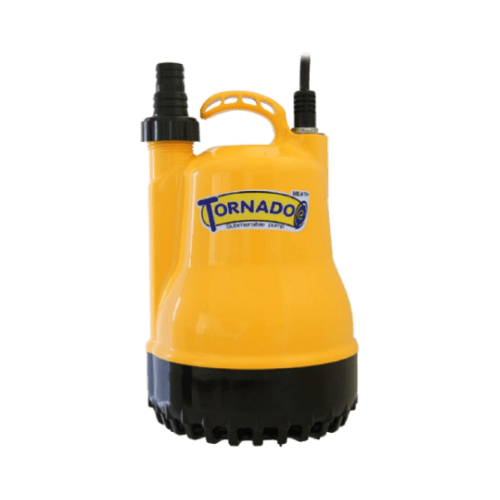

ปั๊มจุ่มดูดน้ำเรือนพลาสติก MITSUBISHI รุ่น Tornado PSP-105S
คุณสมบัติ
- มอเตอร์ติดตั้งอุปกรณ์ป้องกันขดลวดร้อนจัด (Thermal Protector) แม้ในภาสภาวะที่ใบพัดถูกล็อค
- ตัวเครื่องด้านนอกทำจากพลาสติก ABS ชนิดพิเศษทนแรงกระแทก และมีน้ำหนักเบา
- ตะแกรงกรองน้ำถอดง่ายเพื่อให้ประยุกต์ใช้งานได้ทั้ง การระบายน้ำสกปรกทั่วไปและการดูดน้ำจนถึงระดับ 2 มม.
ข้อมูลจำเพาะ
| Pumping Fluid | Type of Fluid | Drainage waste water and Effluent | |
|---|---|---|---|
| pH 5-9 | |||
| Temperature | 0 ~ 40°C | ||

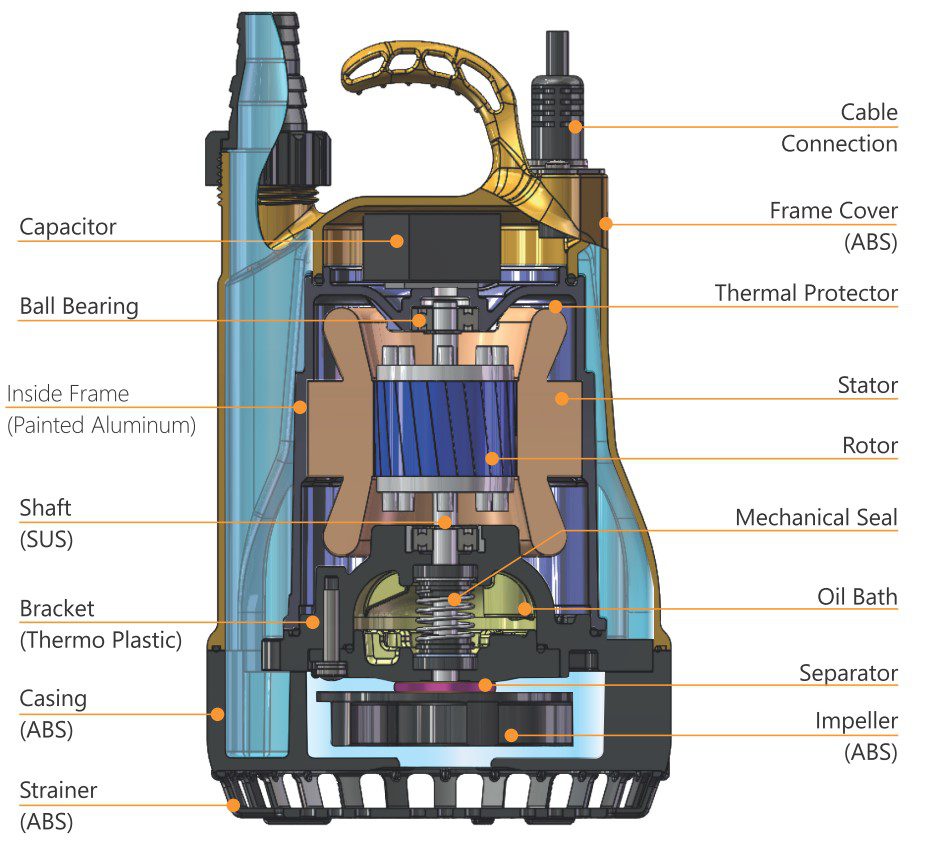

| Pump Sect. | Structure | Impeller | Semi-open Type |

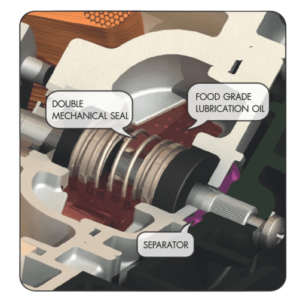

| Shaft Seal | Double Mechanical Seal with Oil Chamber | ||
| Lubricant | Shell Ondina Oil 32 (Medicinal white Oils) | ||
| Material | Frame Cover | ABS | |
| Casing | ABS | ||
| Impeller | Fiber-reinforced Plastic | ||
| M.Seal | Ceramic/ Carbon | ||
| Motor Sect. | Motor | Dry Type Submersible Induction Motor (IP68) 2P. Insulation Class E |
|
| Supply | 10. 220V, 50Hz | ||
| Protector | Miniature Thermal Protector | ||
| Bearing | Double Shielded Ball Type | ||
| Material | Frame | Aluminum with special painting | |
| Bracket | Fiber-reinforced Plastic | ||
| Shaft | SUS303 | ||

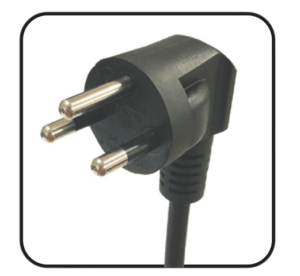

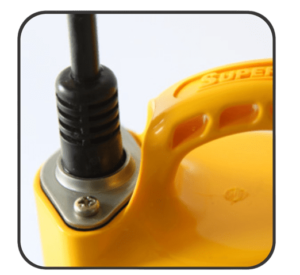

| Cable | H05-WF-3C x 0.75mm2 x 3.5m | ||

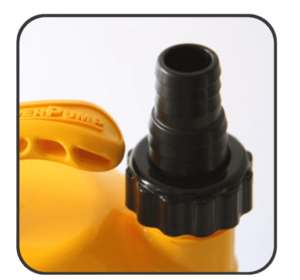

| Discharge Bore | External Thread + Hose Coupling | ||

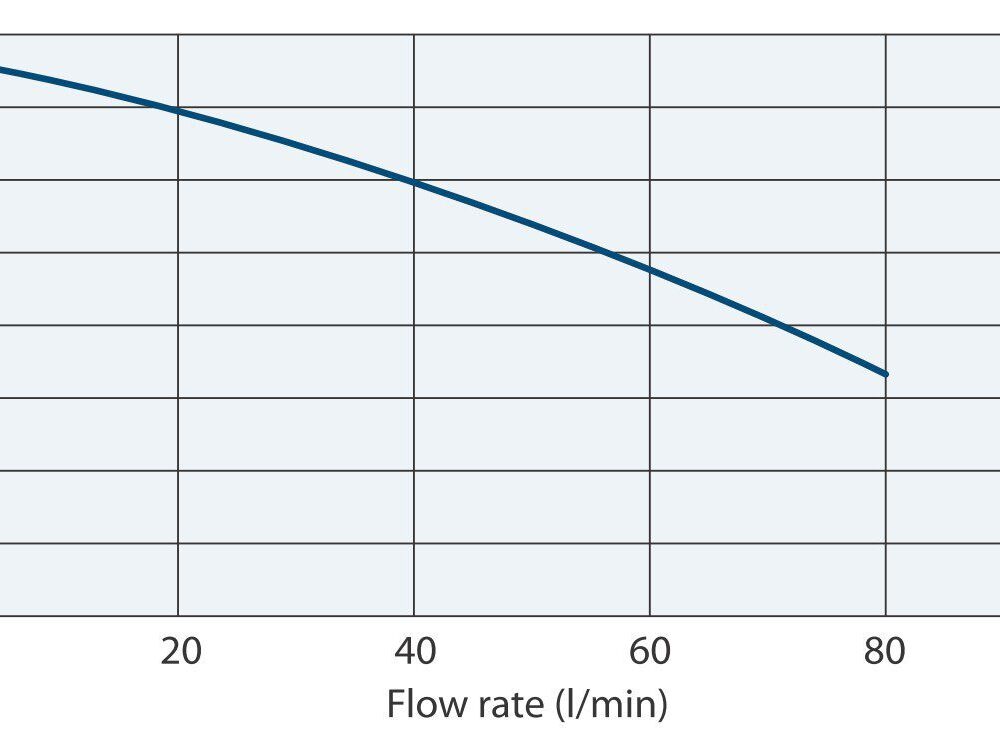

ประสิทธิภาพข้อมูลจำเพาะ
| Model | Motor Output | Phase | Supply | Maximum | Weight (kg) |
Solid Passage (mm) |
|||
|---|---|---|---|---|---|---|---|---|---|
| Head (m) |
Flow Rate (l/min) |
Current (A) |
|||||||
| kW | Hp | ||||||||
| PSP-1O5S | 0.10 | 1/8 | Single | 220V, 50Hz | 7.8 | 80 | 1.1 | 3.2 | 3 |
