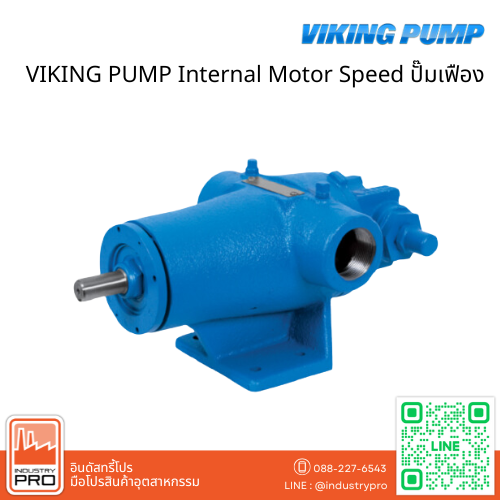

VIKING PUMP Internal Motor Speed ปั๊มเฟือง หรือเกียร์ปั๊ม
คุณสมบัติ
SPECIFICATIONS
| Materials of Construction | Size | NTP Ports | Flange Ports | Nominal Capacity At Maximum Speed (60hz) | Maximum Speed | Maximum Pressure | |||
| Inches | Class 125 (in) | DIN PN-16 (mm) | GPM | M3/Hr | RPM | PSI | BAR | ||
| All Materials | G ① | 1 | — | — | 8 | 1.8 | 1,750 | 250② | 17② |
| GG | 1 | — | — | 10 | 2.3 | 1,750 | 250② | 17② | |
| H ① | 1.5 | — | — | 15 | 3.4 | 1,750 | 250② | 17② | |
| HJ | 1.5 | — | — | 20 | 4.5 | 1,750 | 250② | 17② | |
| HL | 1.5 | — | — | 30 | 6.8 | 1,750 | 250② | 17② | |
| AS | 2.5 | — | — | 55 | 12 | 1,750 | 250② | 17② | |
| AK | 2.5 | — | — | 85 | 19 | 1,750 | 250② | 17② | |
| AL | 3 | — | — | 115 | 26 | 1,750 | 250② | 17② | |
| KE ① | — | 4 | 100 | 150 | 34 | 1,750 | 150 | 10 | |
| KKE① | — | 4 | 100 | 205 | 47 | 1,750 | 150 | 10 | |
| LQE① | — | 4 | 100 | 235 | 53 | 1,150 | 150 | 10 | |
| LSE① | — | 4 | 100 | 350 | 80 | 1,150 | 150 | 10 | |
| Q ① | — | 6 | 150 | 460 | 104 | 750 | 150 | 10 | |
| QS ① | — | 6 | 150 | 580 | 132 | 640 | 150 | 10 | |
