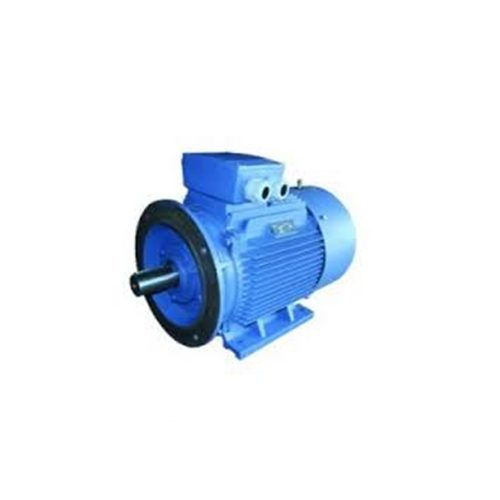

มอเตอร์ไฟฟ้า CROMPTON B series

มอเตอร์ไฟฟ้า Crompton B series สินค้านำเข้าจากประเทศไต้หวัน แข็งแรง ทนทาน ประสิทธิภาพสูง เสียงเงียบ ความสั่นสะเทือนต่ำ รองรับงานที่หนัก ตัวเคสมีให้เลือกทั้งที่ทำจากอะลูมิเนียมและเหล็กหล่อ นอกจากนี้ยังไฟทั้งแบบไฟ 1 เฟส / 220 โวลท์ และไฟ 3 เฟส / 380 โวลท์ ทั้งแบบตั้งพื้น และแบบหน้าแปลน (รุ่น B3, B5)

Categories: , Tags: ,
Brand:BROOK CROMPTON
ขอใบเสนอราคา

สนใจสั่งซื้อ หรือพูดคุยสอบถาม

LINE
  • บริการรวดเร็วประหยัดเวลา
  • พร้อมให้คำปรึกษาเกี่ยวกับสินค้า
  • รายละเอียดสินค้าครบถ้วน

ลดล้างสต๊อกสูงสุด 30%

รายละเอียดสินค้า

มอเตอร์ไฟฟ้า CROMPTON B series

คุณสมบัติ
IP 55 สามารถกันน้ำและฝุ่นได้เป็นอย่างดี Insulation Class F สามารถทนความร้อนได้สูงสุด 155 C° Case เป็นเหล็กหล่อ แข็งแรง ทนทาน และทนต่อการกัดกร่อนได้เป็นอย่างดี Voltage สามารถเลือกระบบไฟ 220 โวลท์ /380 โวลท์

SPECIFICATION

SPECIFICATION
Standard product  Option
Frame material 56- 160 aluminium –
71 – 450 cast iron –
Enclosure IP55 IP56, IP65
Mounting option Foot (B3), Flange (B5), Face (B14) Foot & Flange (B35), Foot & Face (B34)
Terminal box position Top –
Voltage 3 kW and below: 230 / 400 –
4 kW and above: 400 / 690 –
Frequency 50 Hz 60 Hz
Cooling IC411 –
Bearing location 56- 160 aluminium – non drive end –
71 – 450 cast iron – non drive end –
Lubrication 56 – 160 double-shielded bearings –
180 – 450 through greasing –
Insulation class F –
Temperature rise class B –
Paint colour water blue (RAL 5021) –
Heaters – 110-120V or 220-240V
Thermal protection – IE2 80* -112 – Thermostats – aluminium –
  132 -160 – Thermistors – aluminium –
  71 – 450 – Thermistors – cast iron –
Thermal protection – IE1 56 – 450 -Thermistors –
Inverter Duty (with derate) Variable Torque: 10:1 –
  Constant Torque: 2:1 –
Ambient temperature -20°C to + 40°C

Performance data

3000 min-1 (2 pole), aluminium construction

Rated pow Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min–1 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.09 0.15 2750 B-DA56MA 0.52 0.3 – 62 0.7 0.31 2.1 – 2.2 5.2 0.00018 – 3.6
0.12 0.2 2750 B-DA56MB 0.62 0.36 – 67 0.72 0.41 2.1 – 2.2 5.2 0.00023 – 3.9
0.18 0.25 2720 B-DA63MA 0.87 0.5 – 65 0.8 0.63 2.2 – 2.3 5.5 0.00031 – 4.8
0.25 0.33 2720 B-DA63MB 1.14 0.66 – 68 0.81 0.88 2.2 – 2.3 5.5 0.0006 – 5.1
0.37 0.5 2740 B-DA71MA 1.62 0.94 – 70 0.81 1.28 2.2 – 2.3 6.1 0.00075 – 6
0.55 0.75 2740 B-DA71MB 2.3 1.33 – 73 0.82 1.91 2.2 – 2.3 6.1 0.0009 – 6.5
0.75 1 2870 A-DA80MA 2.93 1.69 – 77.4 0.83 2.49 2.5 – 3 5.3 0.0012 56 10.5
1.1 1.5 2870 A-DA80MB 4.18 2.4 – 79.6 0.83 3.66 3.2 – 3.8 7 0.0014 57 11.5
1.5 2 2890 A-DA90SA 5.45 3.13 – 81.3 0.85 4.96 2.7 – 3.5 7.1 0.0029 61 17
2.2 3 2890 A-DA90LA 7.81 4.49 – 83.2 0.85 7.27 2.4 – 3 6.9 0.0055 61 21
3 4 2890 A-DA100LA 10.2 5.88 – 84.6 0.87 9.91 3.2 – 4 8 0.0109 63 26.5
4 5.5 2900 A-DA112MA – 7.65 4.43 85.8 0.88 13.2 2.5 – 3 7.5 0.0126 65 29.5
5.5 7.5 2930 A-DA132SA – 10.4 6.01 87 0.88 17.9 2.7 – 3.5 7.5 0.0377 68 42.5
7.5 10 2930 A-DA132SB – 14 8.09 88.1 0.88 24.4 2.4 – 3.3 7.5 0.0499 68 48
11 15 2940 A-DA160MA – 20 11.6 89.4 0.89 35.7 2.2 – 2.9 7.6 0.055 72 88
15 20 2940 A-DA160MB – 26.9 15.6 90.3 0.89 48.7 2.3 – 3.1 7.6 0.075 73 97
18.5 25 2940 A-DA160LA – 33 19.1 90.9 0.89 60.1 2.3 – 3.1 7.4 0.124 73 107

1500 min-1 (4 pole), aluminium construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.06 0.08 1325 B-DA56MA 0.46 0.27 – 56 0.58 0.43 2 – 2.1 4 0.0003 – 3.6
0.09 0.12 1325 B-DA56MB 0.64 0.37 – 58 0.61 0.65 2 – 2.1 4 0.0004 – 3.9
0.12 0.16 1310 B-DA63MA 0.73 0.42 – 57 0.72 0.84 2.1 – 2.2 4.4 0.0005 – 4.8
0.18 0.25 1310 B-DA63MB 1.02 0.59 – 60 0.73 1.26 2.1 – 2.2 4.4 0.0006 – 5.1
0.25 0.33 1330 B-DA71MA 1.3 0.75 – 65 0.74 1.73 2.1 – 2.2 5.2 0.0008 – 6
0.37 0.5 1330 B-DA71MB 1.85 1.06 – 67 0.75 2.65 2.1 – 2.2 5.2 0.0013 – 6.3
0.55 0.75 1390 B-DA80MA 2.59 1.49 – 71.1 0.75 3.78 2.3 – 2.3 5.2 0.0018 – 12.5
0.75 1 1430 A-DA80MB 3.15 1.81 – 79.6 0.75 5 2.4 – 2.9 5 0.0021 46 14
1.1 1.5 1430 A-DA90SA 4.41 2.53 – 81.4 0.77 7.3 3 – 3.5 6 0.0023 48 18
1.5 2 1430 A-DA90LA 5.76 3.31 – 82.8 0.79 10 3.2 – 3.8 6.8 0.0027 48 20.5
2.2 3 1440 A-DA100LA 8.09 4.65 – 84.3 0.81 14.6 3 – 3.5 7 0.0054 52 29
3 4 1440 A-DA100LB 10.7 6.18 – 85.5 0.82 19.9 2.6 – 3.3 7 0.0067 52 34
4 5.5 1450 A-DA112MA – 8.13 4.71 86.6 0.82 26.3 3.5 – 4 7.5 0.0095 53 38
5.5 7.5 1460 A-DA132SA – 10.9 6.32 87.7 0.83 36 2.2 – 2.8 6.4 0.0214 59 48
7.5 10 1460 A-DA132MA – 14.5 8.42 88.7 0.84 49 2.4 – 3 7 0.0296 59 58.5
11 15 1470 A-DA160MA – 21 12.2 89.8 0.84 71.5 2.5 – 2.9 6.9 0.0747 62 90
15 20 1470 A-DA160LA – 28.4 16.5 90.6 0.84 97.4 2.5 – 3 7.5 0.0918 62 104

1000 min-1 (6 pole), aluminium construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.09 0.15 840 B-DA63MA 0.85 0.49 – 44 0.6 1.02 1.8 – 1.9 3.5 0.00025 – 4.8
0.12 0.2 850 B-DA63MB 1.04 0.6 – 48 0.6 1.35 1.8 – 1.9 3.5 0.0004 – 5.1
0.18 0.25 850 B-DA71MA 1.21 0.7 – 56 0.66 2.02 1.9 – 2 4 0.0011 – 6
0.25 0.33 850 B-DA71MB 1.56 0.9 – 59 0.68 2.8 1.9 – 2 4 0.0014 – 6.3
0.37 0.5 885 B-DA80MA 2.13 1.23 – 62 0.7 3.99 1.9 – 2 4.7 0.0016 – 11.5
0.55 0.75 885 B-DA80MB 2.94 1.7 – 65 0.72 5.94 1.9 – 2.1 4.7 0.0019 – 14
0.75 1 920 A-DA90SA 3.45 1.98 – 75.9 0.72 7.79 2.2 – 2.4 4.5 0.0029 45 18
1.1 1.5 920 A-DA90LA 4.84 2.78 – 78.1 0.73 11.4 2.4 – 2.6 4.5 0.0035 45 20.5
1.5 2 940 A-DA100LA 6.29 3.62 – 79.8 0.75 15.2 1.8 – 2.2 4.2 0.0069 49 27.5
2.2 3 960 A-DA112MA 8.88 5.11 – 81.8 0.76 21.9 2.3 – 2.8 4.5 0.014 53 30.5
3 4 960 A-DA132SA 11.9 6.84 – 83.3 0.76 29.8 1.8 – 2.4 4.5 0.0286 53 40
4 5.5 960 A-DA132MA – 8.96 5.21 84.6 0.76 39.8 2.3 – 2.7 5 0.0357 55 48.5
5.5 7.5 960 A-DA132MB – 12 6.95 86 0.77 54.7 1.9 – 2.8 5.5 0.0449 55 58
7.5 10 970 A-DA160MA – 15.9 9.23 87.2 0.78 73.8 2 – 3 6.5 0.081 57 90
11 15 970 A-DA160LA – 22.7 13.1 88.7 0.79 108.3 2.4 – 3.3 7.5 0.116 57 104

750 min-1 (8 pole), aluminium construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.09 0.15 600 B-DA71MA 0.99 0.57 – 40 0.57 1.4 1.8 – 1.9 2.8 0.0008 48 6
0.12 0.2 600 B-DA71MB 1.21 0.7 – 45 0.57 1.9 1.8 – 1.9 2.8 0.001 48 6.3
0.18 0.25 645 B-DA80MA 1.45 0.84 – 51 0.61 2.6 1.8 – 1.9 3.3 0.0025 48 8.9
0.25 0.33 645 B-DA80MB 1.9 1.1 – 54 0.61 3.7 1.8 – 1.9 3.3 0.003 48 10.4
0.37 0.5 670 B-DA90S 2.44 1.41 – 62 0.61 5.2 1.8 – 1.9 4 0.0051 53 12.1
0.55 0.75 670 B-DA90LA 3.59 2.07 – 63 0.61 7.8 1.8 – 2 4 0.0065 53 13.7
0.75 1 680 B-DA100LA 3.95 2.28 – 71 0.67 10.5 1.8 – 2 4 0.0095 56 23
1.1 1.5 680 B-DA100LB 5.46 3.15 – 73 0.69 15.4 1.8 – 2 5 0.011 56 25.1
1.5 2 690 B-DA112MA 7.24 4.18 – 75 0.69 20.7 1.8 – 2 5 0.0245 59 28.2
2.2 3 705 B-DA132S 9.92 5.73 – 78 0.71 29.8 1.8 – 2 6 0.0314 61 40.3
3 4 705 B-DA132M 13 7.51 – 79 0.73 40.6 1.8 – 2 6 0.0395 61 45
4 5.5 720 B-DA160MA – 9.76 5.64 81 0.73 53.1 1.9 – 2 6 0.0753 65 68.5
5.5 7.5 720 B-DA160MB – 12.9 7.44 83 0.74 72.9 2 – 2 6 0.0931 65 76
7.5 10 720 B-DA160L – 16.9 9.76 85.5 0.75 99.5 2 – 2 6 0.126 65 86.2

3000 min-1 3000 min (2 pole) -1 (2 pole), cast iron construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.37 0.5 2740 B-DF71MA 1.63 0.94 – 70 0.81 1.29 2.2 – 2.2 6.1 0.0006 64 15
0.55 0.75 2740 B-DF71MB 2.3 1.33 – 73 0.82 1.88 2.2 – 2.3 6.1 0.0006 64 15.5
0.75 1 2870 A-DF80MA 2.93 1.69 – 77.4 0.83 2.5 2.5 – 3 5.3 0.0012 56 17
1.1 1.5 2870 A-DF80MB 4.18 2.4 – 79.6 0.83 3.66 3.2 – 3.8 7 0.0014 56 18
1.5 2 2870 A-DF90SA 5.45 3.13 – 81.3 0.85 4.96 2.7 – 3.5 7.1 0.0029 61 23
2.2 3 2890 A-DF90LA 7.81 4.49 – 83.2 0.85 7.27 2.4 – 3 6.9 0.0055 62 26
3 4 2890 A-DF100LA 10.2 5.88 – 84.6 0.87 9.91 3.2 – 4 8 0.0109 64 34
4 5.5 2900 A-DF112MA – 7.65 4.43 85.8 0.88 13.2 2.5 – 3 7.5 0.0126 65 41
5.5 7.5 2930 A-DF132SA – 10.4 6.01 87 0.88 17.9 2.7 – 3.5 7.5 0.0377 68 65
7.5 10 2930 A-DF132SB – 14 8.09 88.1 0.88 24.4 2.4 – 3.3 7.5 0.0499 68 72
11 15 2940 A-DF160MA – 20 11.6 89.4 0.89 35.7 2.2 – 2.9 7.6 0.055 73 112
15 20 2940 A-DF160MB – 26.9 15.6 90.3 0.89 48.7 2.3 – 3 7.6 0.075 73 122
18.5 25 2940 A-DF160LA – 33 19.1 90.9 0.89 60.1 2.3 – 3.1 7.4 0.124 73 136
22 30 2940 A-DF180MA – 38.6 22.4 91.3 0.9 71.5 2.8 – 3.2 7.8 0.075 75 172
30 40 2960 A-DF200LA – 52.3 30.3 92 0.9 96.8 2.6 – 3 7.8 0.124 78 223
37 50 2960 A-DF200LB – 63.4 36.8 92.5 0.91 119.4 2.6 – 3 7.7 0.139 78 242
45 60 2960 AU-DF225M – 77.7 45 92.9 0.9 145.2 2.4 – 2.6 7.5 0.233 78 326
55 75 2970 AU-DF250M – 94.6 54.9 93.2 0.9 176.8 2.3 – 2.8 7.1 0.312 79 382
75 100 2970 AU-DF280S – 127 73.5 93.8 0.91 241.2 2.5 – 2.8 7.4 0.579 80 525
90 125 2970 AU-DF280MA – 152 87.9 94.1 0.91 289.4 2.8 – 2.8 7.6 0.675 80 570
110 150 2980 AU-DF315SA – 185 107 94.3 0.91 352.5 2.4 – 2.8 6.9 1.18 82 930
132 175 2980 AU-DF315MA – 219 127 94.6 0.92 423 2.6 – 2.9 7.1 1.82 82 990
160 215 2980 AU-DF315LA – 268 155 94.8 0.91 512.8 2.5 – 2.9 7.1 2.08 85 1090
200 270 2980 AU-DF315LB – 330 191 95 0.92 641 2.5 – 2.8 6.9 2.38 86 1120
250 335 2980 AU-DF355M – 413 239 95 0.92 801.2 2.5 – 2.8 7 3 88 1900
315 430 2980 AU-DF355L – 520 302 95 0.92 1009 2.5 – 2.9 7 3.5 89 2300
355 475 2975 AU-DF355LA – 593 342 95 0.91 1140 1.23 – 2.53 5.8 12.52 – 2600
400 535 2975 BU-DF355LB – 660 381 95.9 0.91 1284 1.64 – 2.03 7.11 13.26 – 3035
450 600 2975 BU-DF355LC – 741 428 96 0.91 1444 1.47 – 2.72 6.42 14.21 – 3122
500 670 2982 BU-DF400LA – 814 470 96.3 0.92 1601 1.2 – 2.9 6.14 20.07 – 3340
560 750 2982 BU-DF400LB – 908 524 96.3 0.92 1793 0.98 – 2.57 5.46 20.07 – 3340
630 840 2982 BU-DF400LC – 1019 589 96.3 0.93 2018 1.38 – 3.42 7.29 27.1 – 4020
710 950 2988 BU-DF450LA – 1138 657 96.6 0.94 2269 1.2 – 2 7 27.6 – 4200
800 1080 2986 BU-DF450LB – 1276 737 96.7 0.94 2559 1.2 – 2 7 28.1 – 4400
900 1200 2985 BU-DF450LC – 1435 829 96.7 0.94 2879 1.2 – 2 7 28.1 – 4650

1500 min-1 (4 pole), cast iron construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.25 0.33 1330 B-DF71MA 1.3 0.75 – 65 0.74 1.8 2.1 – 2.2 5.2 0.0006 55 14
0.37 0.5 1330 B-DF71MB 1.83 1.06 – 67 0.75 2.66 2.1 – 2.2 5.2 0.0008 55 14.5
0.55 0.75 1390 B-DF80MA 2.58 1.49 – 71.1 0.75 3.78 2.2 – 2.3 5.2 0.0018 58 15
0.75 1 1430 A-DF80MB 3.15 1.81 – 79.6 0.75 5.01 2.4 – 2.9 5 0.0021 46 16
1.1 1.5 1430 A-DF90SA 4.41 2.53 – 81.4 0.77 7.35 3 – 3.5 6 0.0023 48 23
1.5 2 1430 A-DF90LA 5.76 3.31 – 82.8 0.79 10 3.2 – 3.8 6.8 0.0027 48 25
2.2 3 1440 A-DF100LA 8.09 4.65 – 84.3 0.81 14.6 3 – 3.5 7 0.0054 52 33
3 4 1440 A-DF100LB 10.7 6.18 – 85.5 0.82 19.9 2.6 – 3.3 7 0.0067 52 35
4 5.5 1410 A-DF112MA 13.3 8.13 4.71 86.6 0.82 26.3 3.5 – 4 7.5 0.0095 53 42
5.5 7.5 1460 A-DF132SA – 10.9 6.32 87.7 0.83 40 2.2 – 2.8 6.4 0.0214 59 65
7.5 10 1460 A-DF132MA – 14.5 8.42 88.7 0.84 49 2.4 – 3 7 0.0296 59 76
11 15 1470 A-DF160MA – 21 12.2 89.8 0.84 71.4 2.5 – 2.9 6.9 0.0747 62 118
15 20 1470 A-DF160LA – 28.4 16.5 90.6 0.84 97.4 2.5 – 3 7.5 0.0918 62 132
18.5 25 1470 A-DF180MA – 34 19.7 91.2 0.86 120.2 2.6 – 3.1 7.8 0.139 64 164
22 30 1470 A-DF180LA – 39.8 23.1 91.6 0.87 143 2.6 – 3.1 7.5 0.158 64 182
30 40 1470 A-DF200L – 53.9 31.3 92.3 0.87 195 2.4 – 2.9 7.1 0.262 64 245
37 50 1480 A-DF255S – 66.2 38.4 92.7 0.87 239 2.5 – 2.7 7.5 0.406 64 258
45 60 1475 AU-DF225M – 80.2 46.5 93.1 0.87 290.4 2.5 – 2.8 7.6 0.469 65 290
55 75 1475 AU-DF250MA – 97.6 56.6 93.5 0.87 356 2.6 – 2.7 7.3 0.66 66 388
75 100 1480 AU-DF280S – 132 76.7 94 0.87 484 2.7 – 2.7 7.6 1.12 69 510
90 125 1480 AU-DF280MA – 159 91.9 94.2 0.87 581 2.7 – 2.7 7.5 1.46 69 606
110 150 1485 AU-DF315S – 189 109 94.5 0.89 707 2.7 – 2.9 7.1 3.11 77 910
132 175 1485 AU-DF315M – 226 131 94.7 0.89 849 2.7 – 2.9 7.3 3.62 77 1000
160 215 1485 AU-DF315LA – 273 159 94.9 0.89 1029 3 – 3 7.4 4.13 82 1055
200 270 1485 AU-DF315LB – 341 198 95.1 0.89 1286 3 – 3 7.6 4.73 82 1128
250 335 1485 AU-DF355M – 422 244 95.1 0.9 1608 2.8 – 2.9 7.5 6.5 84 1700
315 430 1490 AU-DF355L – 531 308 95.1 0.9 2026 2.6 – 2.8 7.4 8.2 84 1900
355 475 1485 AU-DF355LA – 612 353 95.1 0.88 2283 1.93 – 2.6 6.5 9.5 – 2150
400 535 1485 BU-DF355LB – 680 393 96.4 0.88 2572 1.8 – 2.6 6.5 10.6 – 2300
450 600 1485 BU-DF355LC – 757 437 96.4 0.89 2894 1.8 – 2.6 6.5 11.5 – 2460
500 670 1492 BU-DF400LA – 831 480 96.4 0.9 3200 1.83 – 2.52 6.19 18.41 – 3132
560 750 1492 BU-DF400LB – 924 533 96.4 0.9 3585 2.02 – 2.67 6.64 19.62 – 3548
630 840 1492 BU-DF400LC – 1043 602 96.4 0.91 4033 1.75 – 2.34 5.81 21.33 – 3589
710 950 1492 BU-DF450LA – 1164 672 96.4 0.91 4545 1.3 – 2.57 6.17 41 – 4055
800 1070 1492 BU-DF450LB – 1308 755 96.6 0.93 5120 1.53 – 2.28 6.91 49.5 – 4724
900 1200 1492 BU-DF450LC – 1496 864 96.6 0.92 5760 1.75 – 2.34 5.81 49.5 – 4732

1000 min-1 (6 pole), cast iron construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.18 0.25 850 B-DF71MA 1.21 0.7 – 56 0.66 2.02 1.9 – 2 4.4 0.0011 52 14
0.25 0.33 850 B-DF71MB 1.56 0.9 – 59 0.68 2.81 1.9 – 2 4 0.0014 52 14.5
0.37 0.5 885 B-DF80MA 2.13 1.23 – 62 0.7 3.99 1.9 – 2 4.7 0.0016 54 15
0.55 0.75 885 B-DF80MB 2.94 1.7 – 65 0.72 5.94 1.9 – 2.1 4.7 0.0019 54 16
0.75 1 920 A-DF90SA 3.45 1.98 – 75.9 0.72 7.79 2.2 – 2.4 4.5 0.0029 45 19
1.1 1.5 920 A-DF90LA 4.84 2.78 – 78.1 0.73 11.4 2.4 – 2.6 4.5 0.0035 45 22
1.5 2 940 A-DF100LA 6.29 3.62 – 79.8 0.75 15.2 1.8 – 2.2 4.2 0.0069 49 32
2.2 3 960 A-DF112MA 8.88 5.11 – 81.8 0.76 21.9 2.3 – 2.8 4.5 0.014 53 41
3 4 960 A-DF132SA 11.9 6.84 – 83.3 0.76 29.8 1.8 – 2.4 4.5 0.0286 53 44
4 5.5 960 A-DF132MA – 8.98 5.21 84.6 0.76 39.8 2.3 – 2.7 5 0.0357 55 53
5.5 7.5 960 A-DF132MB – 12 6.95 86 0.77 54.7 1.9 – 2.8 5.5 0.0449 55 63.5
7.5 10 970 A-DF160MA – 15.9 9.23 87.2 0.78 73.8 2 – 3 6.5 0.081 57 118
11 15 970 A-DF160LA – 22.7 13.1 88.7 0.79 108.3 2.4 – 3.3 7.5 0.116 57 145
15 20 970 A-DF180LA – 29.4 17.1 89.7 0.82 147.7 2 – 2.7 6.4 0.207 58 198
18.5 25 970 A-DF200LA – 36.5 21.1 90.4 0.81 182.1 2.3 – 3 7 0.315 58 200
22 30 970 A-DF200LB – 43.1 25 90.9 0.81 216.6 2.3 – 2.8 7 0.36 61 228
30 40 980 AU-DF225M – 56.2 32.6 91.7 0.84 292.3 2.2 – 2.7 6.5 0.547 62 265
37 50 985 AU-DF250M – 68.1 39.5 92.2 0.85 358.7 2.5 – 2.7 6.9 0.843 62 370
45 60 980 AU-DF280S – 81.5 47.2 92.7 0.86 438.5 2.2 – 2.4 7 1.39 63 490
55 75 980 AU-DF280MA – 99.2 57.5 93.1 0.86 536 2.4 – 2.5 7.1 1.65 64 540
75 100 990 AU-DF315SA – 134 77.9 93.7 0.86 723 2.8 – 3 7.3 4.11 68 900
90 125 990 AU-DF315MA – 161 93.2 94 0.86 868 2.7 – 2.9 7.1 4.78 68 980
110 150 990 AU-DF315LA – 196 113 94.3 0.86 1061 2.9 – 2.9 7.4 5.45 73 1045
132 175 990 AU-DF315LB – 231 133 94.6 0.87 1273 3 – 3.1 7.6 6.12 73 1100
160 215 990 AU-DF355MA – 277 160 94.8 0.88 1543 3.1 – 3.1 7.6 9.5 80 1550
200 270 990 AU-DF355MB – 345 200 95 0.88 1929 3 – 3 7.8 10.4 80 1600
250 335 990 AU-DF355L – 432 249 95 0.88 2412 3.1 – 3 7.7 12.4 80 1700
315 420 990 AU-DA355LA – 563 325 95 0.85 3039 2.1 – 2.4 6.5 13.5 – 2310
355 480 990 AU-DF355LB – 634 366 95 0.85 3424 2.1 – 2.4 6.5 14.3 – 2490
400 544 990 BU-DF400LA – 701 405 95.9 0.86 3856 2.08 – 2.48 6.38 21.86 – 3560
450 612 994 BU-DF400LB – 783 452 95.9 0.86 4323 2.07 – 2.43 6.31 22.31 – 3840
500 680 994 BU-DF400LC – 871 503 96.1 0.86 4804 1.86 – 2.19 5.72 23.52 – 3870
560 760 994 BU-DF450MB – 874 505 96 0.86 5380 1.64 – 2.32 5.99 54.1 – 4200
630 850 994 BU-DF450LA – 1097 633 96.1 0.86 6052 1.65 – 2.3 5.99 60.6 – 4620
710 960 994 BU-DF450LB – 1235 713 95.9 0.86 6821 1.71 – 2.33 6.13 67.9 – 5080
800 1080 994 BU-DF450LC – 1381 797 96.5 0.87 7686 1.52 – 2.06 5.47 67.9 – 5080

750 min-1 (8 pole), cast iron construction

Rated power Full load speed in revolutions per minute Frame reference and size Full load current at rated voltage Efficiency Power factor Full load torque Direct on line starting torque ratio Direct on line pull up torque Direct on line pull out torque Direct on line starting current ratio Rotor inertia WK2 Mean Sound pressure level @ 1m on no load Weight
PN n Type IIN h Cos Ø MN MA MS MK IA J LPA kg
KW hp min¯¹ 230V 400V 690V 1.0 PN 1.0 PN Nm MN MN MN IN kgm² dB(A)
A A A
0.09 0.15 600 B-DF71MA 0.99 0.57 – 40 0.57 1.3 1.8 – 1.9 2.8 0.0008 48 6
0.12 0.2 600 B-DF71MB 1.21 0.7 – 45 0.57 2.16 1.8 – 1.9 2.8 0.001 48 6.3
0.18 0.25 645 B-DF80MA 1.45 0.84 – 51 0.61 2.66 1.8 – 1.9 3.3 0.0025 48 8.9
0.25 0.33 645 B-DF80MB 1.9 1.1 – 54 0.61 3.7 1.8 – 1.9 3.3 0.003 48 10.4
0.37 0.5 670 B-DF90S 2.44 1.41 – 62 0.61 5.27 1.8 – 1.9 4.9 0.0051 53 12.1
0.55 0.75 670 B-DF90LA 3.58 2.07 – 63 0.61 7.84 1.8 – 2 4 0.0065 53 13.7
0.75 1 680 B-DF100LA 3.95 2.28 – 71 0.67 10.5 1.8 – 2 4 0.0095 56 23
1.1 1.5 680 B-DF100LB 5.45 3.15 – 73 0.69 15.4 1.8 – 2 5 0.011 56 25.1
1.5 2 690 B-DF112MA 7.24 4.18 – 75 0.69 20.8 1.8 – 2 5 0.0245 59 28.2
2.2 3 705 B-DF132S 9.92 5.73 – 78 0.71 29.8 1.8 – 2 6 0.0314 61 40.3
3 4 705 B-DF132M 13 7.51 – 79 0.73 40.6 1.8 – 2 6 0.0395 61 45
4 5.5 720 B-DF160MA – 9.76 5.64 81 0.73 53.1 1.9 – 2 6 0.0753 65 68.5
5.5 7.5 720 B-DF160MB – 12.9 7.44 83 0.74 72.9 2 – 2 6 0.0931 65 76
7.5 10 720 B-DF160L – 16.9 9.76 85.5 0.75 99.5 2 – 2 6 0.126 65 86.2
11 15 730 B-DF180L – 23.9 13.8 87.5 0.76 144 2 – 2 6 0.203 70 160
15 20 730 B-DF200L – 32.4 18.7 88 0.76 196 2 – 2 6.6 0.399 73 228
18.5 25 730 BU-DF225S – 39 22.5 90 0.76 242 1.9 – 2 6.6 0.491 73 242
22 30 730 BU-DF225M – 45 26 90.5 0.78 288 1.9 – 2 6.6 0.547 73 265
30 40 735 BU-DF250M – 60.2 34.8 91 0.79 390 1.9 – 2 6.6 0.834 75 368
37 50 735 BU-DF280S – 73.9 42.7 91.5 0.79 481 1.9 – 2 6.6 1.93 76 472
45 60 735 BU-DF280M – 89.4 51.6 92 0.79 585 1.8 – 2 6.6 3.65 76 538
55 75 735 BU-DF315SA – 106 61.2 92.8 0.81 715 1.8 – 2 6.6 4.79 82 900
75 100 735 BU-DF315MA – 144 83.1 93 0.81 975 1.8 – 2 6.6 5.58 82 1000
90 125 735 BU-DF315LA – 169 97.6 93.8 0.82 1169 1.8 – 2 6.6 6.37 82 1055
110 150 735 BU-DF315LB – 206 119 94 0.82 1429 1.8 – 2 6.4 7.23 82 1118
132 175 740 BU-DF355MA – 248 143 93.7 0.82 1704 1.8 – 2 6.4 7.9 90 2000
160 215 740 BU-DF355MB – 299 172 94.2 0.82 2065 1.8 – 2 6.4 10.3 90 2150
200 270 740 BU-DF355L – 368 212 94.5 0.83 2581 1.8 – 2 6.4 12.3 90 2250
250 340 740 BU-DF355LB – 485 280 95.3 0.78 3226 1.8 – 2 6.5 14.53 – 2460
315 420 740 BU-DF355LC – 610 352 95.5 0.78 4065 1.8 – 2 6.5 15.39 – 2750
355 480 745 BU-DF400LB – 641 370 95.6 0.85 4551 1.72 – 2.25 5.84 29.76 – 3592
400 540 745 BU-DF400LC – 723 417 95.6 0.85 5128 1.96 – 2.44 6.39 31.34 – 3949
450 600 745 BU-DF450LB – 817 472 95.7 0.83 5768 1.62 – 2.18 5.43 75.2 – 4660
500 675 745 BU-DF450LC – 913 527 95.7 0.83 6409 1.74 – 2.23 5.65 79.3 – 4870

สินค้าที่เกี่ยวข้อง

สินค้าที่เกี่ยวข้อง

รีวิวสินค้า

{{ reviewsTotal }}{{ options.labels.singularReviewCountLabel }}
{{ reviewsTotal }}{{ options.labels.pluralReviewCountLabel }}
{{ options.labels.newReviewButton }}
{{ userData.canReview.message }}
ขอใบเสนอราคา
LINE

บริษัท อินดัสทรี้โปร จำกัด

255/1 ชั้น 3 ถนนเจริญกรุง แขวงบ้านบาตร
เขตป้อมปราบศัตรูพ่าย กรุงเทพมหานคร 10100
โทร: 088-227-6543

สินค้า&แบรนด์

เกี่ยวกับเรา&ติดต่อ

บทความ&ข่าวสาร

ติดต่อผ่าน LINE

promotions celar stock

กำลังไปหน้าขอใบเสนอราคา (รถเข็น)
