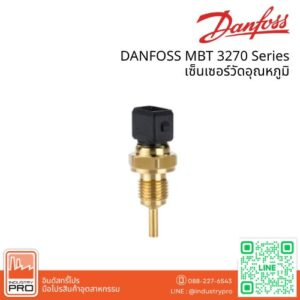

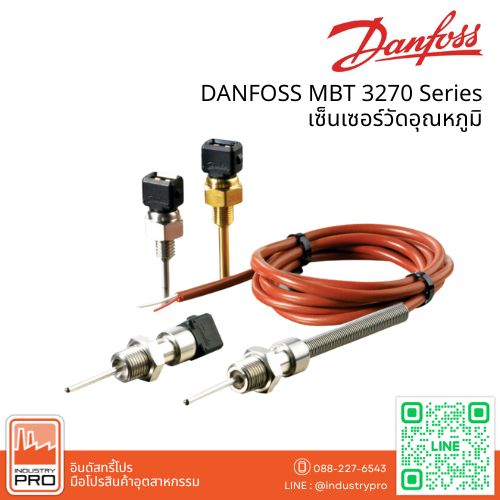

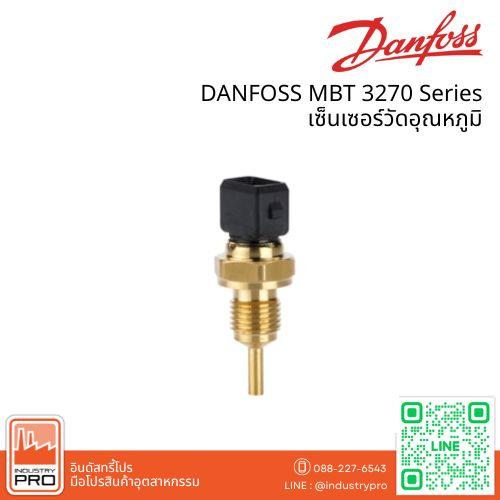

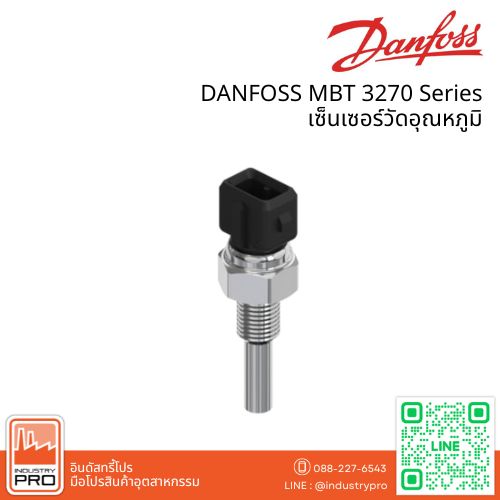

DANFOSS MBT 3270 Series เซนเซอร์วัดอุณหภูมิ
คุณสมบัติ
- OEM Temperature Sensor program
- มี Sensor Elements ให้เลือกตามการใช้งาน (RTD, NTC, PTC)
- วัสดุทำจากทองเหลืองหรือสแตนเลส
- มีการตอบสนองที่รวดเร็ว
- รองรับอุณหภูมิสูงสุดถึง 300 °C
- มีให้เลือกทั้งแบบสายเคเบิลหรือปลั๊กเชื่อมต่อ (Delphi Metri Pack, AMP Junior Power Timer, Deutsch DT04)
Cable version
General data
| Features | Description | ||
| Ambient temperature | Cable | PVC | -40 – 100 °C |
| Silicon | -40 – 200 °C | ||
| Teflon | -40 – 200 °C | ||
| Polyolefin (oil resistant) | -40 – 150 °C | ||
| Plug | AMP spade | -40 – 200 °C | |
| AMP Junior Power Timer | -40 – 125 °C | ||
| Delphi Metri Pack 102 | -40 – 125 °C | ||
| Deutsch DT04-3P | -40 – 125 °C | ||
| Media temperature | Pt 100 | -50 – 300 °C | |
| NTC | -50 – 150 °C, Special versions up to 300 °C | ||
| PTC | -50 – 150 °C | ||
| Max. external pressure | Operating pressure | 500 bar | |
| Burst pressure | > 900 bar | ||
| Max. tightening torque | M10 | 17 Nm | |
| M14 | 24 Nm | ||
Performance
| Features | Description | |
| Sensor Element | Pt 100, Pt 1000, NTC, PTC | |
| Process Connection | Refer to ordering standard, see page Cable version | |
| Sensor insertion length | Brass | 80 mm @ d ≥ 8 mm |
| 60 mm @ 8 > d > 5 mm | ||
| 40 mm @ d ≤ 5 mm | ||
| Stainless steel | 70 mm @ d ≥ 8 mm | |
| 50 mm @ 8 > d > 5 mm | ||
| 35 mm @ d ≤ 5 mm | ||
| Electrical Connection | Stripped wire ends | |
| Cable with AMP spade (6.35) | ||
| Cable with AMP Junior Power Timer | ||
| Cable with Delphi Metri Pack 102 | ||
| Cable with Deutsch DT04-3P-2P | ||
| Other on request | ||
| Connection | 2, 3 or 4 wire (depending on electrical connection) | |
Mechanical and environmental specifications
| Features | Description | |
| Sensor tolerances | Pt 1000 / Pt 100 NTC | EN 60751 Class B: ± (0.3 + 0.005 × t) |
| NTC | On request | |
| PTC 2000 (KTY 81 – 210) | ± 1% at 25 º C | |
| Vibration stability | Shock | 50 g / 6 ms |
| Vibrations, x-y-z directions | 15.3 g sine, 20 – 2000 Hz, 8 hours | |
| Sensor only | IP67 according to IEC 60529 | |
| Enclosure | Cable with AMP spade | IP00 according to IEC 60529 |
| Cable with AMP Junior Timer | IP65 according to IEC 60529 | |
| Cable with Delphi Metri Pack 102 | IP65 according to IEC 60529 | |
| Cable with Deutsch DT04 | IP65 according to IEC 60529 | |
Materials
| Features | Description |
| Protection tube in contact with media | AISI 316 |
| Brass | |
| Process connection | AISI 316 |
| Brass | |
| Cable | PVC, Silicon, Teflon (other on request) |
| Gasket | Viton, NBR (other on request) |
| Plug | PPS (Ryton 4) |
Integrated plug version
General data
| Features | Description | |
| Ambient temperature | Plug | -40 – 125 °C |
| Media temperature | Pt 1000, Pt 100 | -50 – 300 °C |
| NTC | -50 – 150 °C, Special versions up to 300 °C | |
| PTC | -50 – 150 °C | |
| Max. external pressure | Operating pressure | 500 bar |
| Burst pressure | > 900 bar | |
| Max. tightening torque | M10 | 17 Nm |
| M14 | 24 Nm | |
Performance
| Features | Description | |
| Sensor Element | Pt 100, Pt 1000, NTC, PTC | |
| Process Connection | Refer to ordering standard, see page Integrated plug version | |
| Sensor insertion length | Brass | 80 mm @ d ≥ 8 mm |
| 60 mm @ 8 > d > 5 mm | ||
| 40 mm @ d ≤ 5 mm | ||
| Stainless steel | 70 mm @ d ≥ 8 mm | |
| 50 mm @ 8 > d > 5 mm | ||
| 35 mm @ d ≤ 5 mm | ||
| Electrical Connection | AMP Junior Power Timer | |
| Delphi Metri Pack | ||
| Deutsch DT04 | ||
| Other on request | ||
| Connection | 2 wire | |
Mechanical and environmental specifications
| Features | Description | |
| Sensor tolerances | Pt 1000 / Pt 100 NTC | EN 60751 Class B On request |
| PTC 2000 (KTY 81 – 210) | ± 1% at 25 °C | |
| Vibration stability | Shock | 50 g / 6 ms |
| Vibrations, x-y-z directions | 15.3 g sine, 20 – 2000 Hz, 8 hours | |
| Enclosure | AMP Junior Power Timer | IP65 according to IEC 60529 |
| Delphi Metri Pack | ||
| Deutsch DT04 | ||
Ordering
Ordering for MBT 3270 – Cable version
Ordering for MBT 3270 – Integrated plug version
