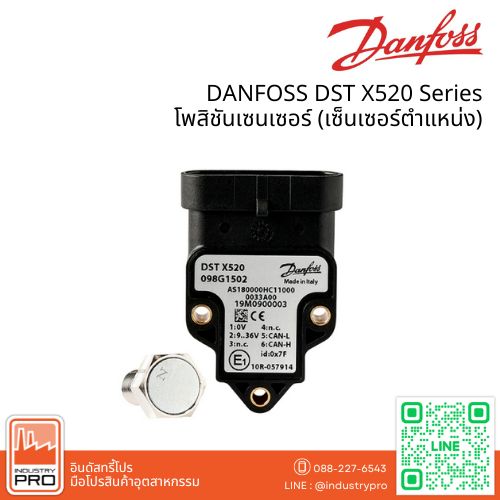

DANFOSS DST X520 Series โพสิชันเซนเซอร์ (เซนเซอร์ตำแหน่ง)
Features
- เทคโนโลยี Hall แบบไม่สัมผัส ช่วยให้อายุการใช้งานเซ็นเซอร์เกือบไร้ขีดจำกัด
- รองรับการวัดมุมสูงสุดถึง 360° (±180°) ทั้งแบบ Single หรือ Redundant
- Output: แบบ Analog, CANopen หรือ SAE J1939
- ความแม่นยำเชิงเส้น: < ± 0.5% FS
- ความละเอียด: ◦ 12 bit (analog) ◦ 14 bit (CANopen/SAE J1939)
- ระดับการป้องกัน IP67 – IP69K เมื่อใช้กับขั้วต่อแบบ Female Mating
- แม่เหล็ก SmCo คุณภาพสูง ขนาด 10 มม.
Technical data
Table 1 : Performance
| Measuring range | CAN | ±180° (360 °C) |
| Analogue | Programmable ± 15 °C | |
| Linearity | ≤ ± 0.5% FS | |
| Resolution and speed of rotation | 12 bit (analog output) | 120 rpm max. |
| 14 bit (CANopen/SAE J1939 output) | ||
| Durability | No wear through the use of permanent external magnet | |
Table 2 : Electrical specifications
| Electrical connections | AMP Superseal 6p 282108, Cable or cable + M12 |
| Output signal | CANopen / SAE J1939, Ratiometric 10-90% of Vs, 0.5–4.5 V DC, 0 –10 V DC or 4–20 mA |
| Supply voltage | CANopen/J1939, 0.5–4.5 V DC, 4–20 mA: 9–36 V DC |
| 0 – 10 V DC, 11–36 V DC Ratiometric: 10-90% of Vs: 5 V DC | |
| Current consumption | Analogue: < 10 mA / pr. channel (no load) |
| CANopen/J1939: < 15 mA (no load) | |
| MTTFd [Years] | CANopen/J1939: 336 Analogue: 406 (Single Channel) |
Table 3 : Environmental conditions
| Operating temperature range | -40 – 85 °C | ||
| Thermal drift temperature | < 50 ppm/°C | ||
| EMC | Emission | EN 55011 and CISPR 25 | |
| Immunity | EN 61236-3-2 and ISO 11452-2 | ||
| Transient on supply lines | ISO 7637-2 | ||
| Bulk current injection | ISO 11452-4 | ||
| Vibration stability | Sinusoidal | 20 g, 10 Hz – 2,000 kHz | IEC 60068-2-6 |
| Shock resistance | Impulsive on 3 axes | 50 g, 11 ms | IEC 60068-2-27 |
| IP protection | AMP Superseal: IP67 – IP69K with female mating connect Cable: IP69K | ||
| Cable + M12: IP67 | |||
Table 4 : Mechanical characteristics
| Materials | Enclosure | PBT (Polybutylene terephthalate) |
| Net weight | 0.036 kg | |
Dimensions
Ordering type
| Type | Output signal | Cofigurations | Code no. |
| DST X520 incl. PKIT magnet | 5 V Ratiometric | ±180° Clockwise CW | 098G1500 |
| 5 V Ratiometric | ±180° CounterclokwiseCCW/CH2 clockwise CW | 098G1501 | |
| 36 V CANopen | ±180° Clockwise CW | 098G1502 | |
| 36 V SAE J1939 | ±180° Clockwise CW | 098G1503 |
Ordering code – on request
| Electrical connections | |
| AMP Superseal 6P connector | A |
| Cable (specify cable length) | F |
| Circuit type | |
| Single Analog and half redundant CANopen/ J1939 | S |
| Redundant Analog | R |
| Angle/Channel 1 (output for single channel) | |
| (Analog output A1-A2-A3 programmable in steps of ±15°) (CAN/J 1939 = 180) | xxx |
| Angle/Channel 2 (redundant/half redundant) | |
| Analog output = same as Channel 1 and (CAN/J 1939 = 000) | xxx |
| Supply voltage | |
| +5Vdc (only for A1 output) | L |
| +9…+36Vdc (see output signal for right supply voltage) | H |
| Output type | |
| +0.5…+4.5V DC output (available with supply L = ratiometric output and with supply H = 0.5. 4.5V output) | A1 |
| 0…+10Vdc output (powered at +11..36V DC) | A2 |
| 4…20mA output (powered at +9…36V DC) | A3 |
| CANopen output (powered at +9…36V DC) (available in single version with +/-180° measurement range) | C1 |
| SAE J1939 (powered at +9…36V DC) (available in single version with +/-180° measurement range) | C2 |
| Rotation direction | |
| Clockwise CW (single) Both clockwise CW (redundant or CAN/J1939) | 1 |
| Counterclockwise CCW (single) Both counterclockwise CCW (redundant or CAN/J1939) | 2 |
| CHANNEL 1 clockwise CW and CHANNEL 2 counterclockwise CCW (redundant version or CAN/J1939) | 3 |
| CHANNEL 1 counterclockwise CCW and CHANNEL 2 clockwise CW (redundant version or CAN/J1939) | 4 |
| Cable | |
| Single cable without connector (always “0” in case of DST X520 A version) | 0 |
| Cable + M12, 5-pin male overprinted connector | 1 |
