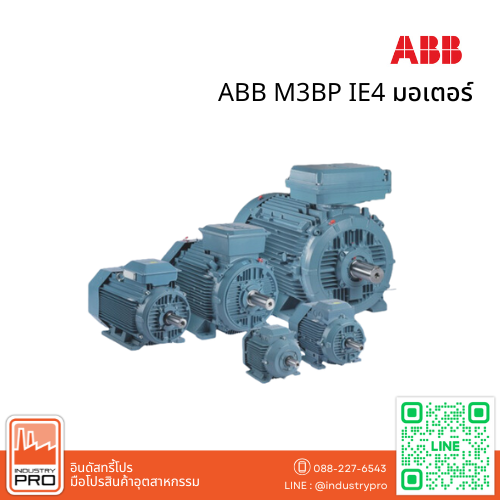

ABB M3BP IE4 มอเตอร์
การใช้งาน
- ปั๊มน้ำและระบบสูบจ่ายของเหลว
- เครื่องเป่าลมและระบบระบายอากาศ
- สายพานลำเลียง
- เครื่องจักรอุตสาหกรรมทั่วไป
- ระบบการผลิตในโรงงาน
SPECIFICATIONS
| Motor Type | Product Code | Output kW | HP | Pole | Full Load | Voltage | HZ | IP | Class |
|---|---|---|---|---|---|---|---|---|---|
| M3BP 280 SMB 2 | 3GBP281220 | 75 | 100 | 2 | 96.3 | 400 | 50 | 55 | M |
| M3BP 280 SMC 2 | 3GBP281230 | 90 | 120 | 2 | 96.5 | 400 | 50 | 55 | M |
| M3BP 315 SMB 2 | 3GBP311220 | 110 | 150 | 2 | 96.4 | 400 | 50 | 55 | M |
| M3BP 315 SMC 2 | 3GBP311230 | 132 | 175 | 2 | 96.6 | 400 | 50 | 55 | M |
| M3BP 315 MLA 2 | 3GBP311410 | 160 | 215 | 2 | 97.1 | 400 | 50 | 55 | M |
| M3BP 315 MLB 2 | 3GBP311420 | 200 | 270 | 2 | 97.1 | 400 | 50 | 55 | M |
| M3BP 355 SMA 2 | 3GBP351210 | 200 | 270 | 2 | 97 | 400 | 50 | 55 | M |
| M3BP 315 LKB 2 | 3GBP311820 | 250 | 335 | 2 | 96.9 | 400 | 50 | 55 | M |
| M3BP 355 SMB 2 | 3GBP351220 | 250 | 335 | 2 | 97.2 | 400 | 50 | 55 | M |
| M3BP 355 SMC 2 | 3GBP351230 | 315 | 425 | 2 | 97 | 400 | 50 | 55 | M |
| M3BP 355 MLA 2 | 3GBP351410 | 355 | 475 | 2 | 97 | 400 | 50 | 55 | M |
| M3BP 280 SMC 4 | 3GBP282230 | 75 | 100 | 4 | 96.2 | 400 | 50 | 55 | M |
| M3BP 280 MLA 4 | 3GBP282410 | 90 | 120 | 4 | 96.4 | 400 | 50 | 55 | M |
| M3BP 315 SMC 4 | 3GBP312230 | 110 | 150 | 4 | 96.8 | 400 | 50 | 55 | M |
| M3BP 315 SMD 4 | 3GBP312240 | 132 | 175 | 4 | 96.9 | 400 | 50 | 55 | M |
| M3BP 315 MLB 4 | 3GBP312420 | 160 | 215 | 4 | 96.9 | 400 | 50 | 55 | M |
| M3BP 315 LKB 4 | 3GBP312820 | 200 | 270 | 4 | 97 | 400 | 50 | 55 | M |
| M3BP 355 SMA 4 | 3GBP352210 | 200 | 270 | 4 | 97 | 400 | 50 | 55 | M |
| M3BP 315 LKC 4 | 3GBP312830 | 250 | 335 | 4 | 97 | 400 | 50 | 55 | M |
| M3BP 355 SMB 4 | 3GBP352220 | 250 | 335 | 4 | 97 | 400 | 50 | 55 | M |
| M3BP 355 SMC 4 | 3GBP352230 | 315 | 425 | 4 | 97.2 | 400 | 50 | 55 | M |
| M3BP 355 MLA 4 | 3GBP352410 | 355 | 475 | 4 | 97 | 400 | 50 | 55 | M |
| M3BP 280 SMB 6 | 3GBP283220 | 45 | 60 | 6 | 95.2 | 400 | 50 | 55 | M |
| M3BP 280 SMC 6 | 3GBP283230 | 55 | 75 | 6 | 95.4 | 400 | 50 | 55 | M |
| M3BP 315 SMC 6 | 3GBP313230 | 75 | 100 | 6 | 96.2 | 400 | 50 | 55 | M |
| M3BP 315 SMD 6 | 3GBP313240 | 90 | 120 | 6 | 96.1 | 400 | 50 | 55 | M |
| M3BP 315 MLB 6 | 3GBP313420 | 110 | 150 | 6 | 96.4 | 400 | 50 | 55 | M |
| M3BP 315 LKA 6 | 3GBP313810 | 132 | 175 | 6 | 96.4 | 400 | 50 | 55 | M |
| M3BP 315 LKC 6 | 3GBP313830 | 160 | 215 | 6 | 96.7 | 400 | 50 | 55 | M |
| M3BP 355 SMB 6 | 3GBP353220 | 160 | 215 | 6 | 96.4 | 400 | 50 | 55 | M |
| M3BP 355 SMC 6 | 3GBP353230 | 200 | 270 | 6 | 96.5 | 400 | 50 | 55 | M |
| M3BP 355 MLB 6 | 3GBP353420 | 250 | 335 | 6 | 96.6 | 400 | 50 | 55 | M |
| M3BP 355 LKA 6 | 3GBP353810 | 315 | 425 | 6 | 96.6 | 400 | 50 | 55 | M |
| M3BP 355 LKB 6 | 3GBP353820 | 355 | 475 | 6 | 96.7 | 400 | 50 | 55 | M |
