2RB-1HY99 Single Stage Regenerative Blower GREENCO

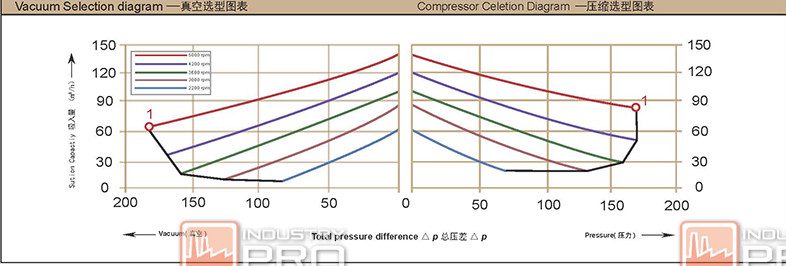

GREENCO 2RB 213-1HY99
| NO. | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 0.7 | 80 | -130 | 130 | 53 | 5.5 | 1x···2110/···2141 (RV-01) |
| 3600 | 0.83 | 100 | -160 | 160 | 56 | |||
| 4200 | 0.95 | 120 | -170 | 170 | 60 | |||
| 5000 | 1.1 | 140 | -180 | 170 | 62 |
GREENCO 2RB 233-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 0.7 | 105 | -120 | 140 | 54 | 7 | 1x···2110/···2141 (RV-01) |
| 3600 | 0.83 | 120 | -160 | 180 | 57 | |||
| 4200 | 0.95 | 140 | -220 | 230 | 60 | |||
| 5000 | 1.1 | 170 | -210 | 190 | 63 |
GREENCO 2RB 413-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 0.85 | 150 | -160 | 160 | 63 | 7.5 | 1x···2110/···2141 (RV-01) |
| 3600 | 0.95 | 180 | -160 | 160 | 64 | |||
| 4200 | 1.3 | 220 | -180 | 180 | 68 | |||
| 5000 | 1.5 | 250 | -140 | 130 | 74 | |||
| 2 | 3000 | 1.3 | 150 | -170 | 200 | 63 | ||
| 3600 | 1.5 | 180 | -210 | 200 | 64 | |||
| 4200 | 1.75 | 220 | -210 | 190 | 68 | |||
| 5000 | 2.1 | 250 | -190 | 190 | 74 |
GREENCO 2RB 433-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 1.3 | 180 | -180 | 200 | 64 | 8.5 | 1x···2110/···2141 (RV-01) |
| 3600 | 1.5 | 210 | -210 | 240 | 65 | |||
| 4200 | 1.75 | 255 | -240 | 230 | 69 | |||
| 5000 | 2.1 | 300 | -180 | 170 | 75 |

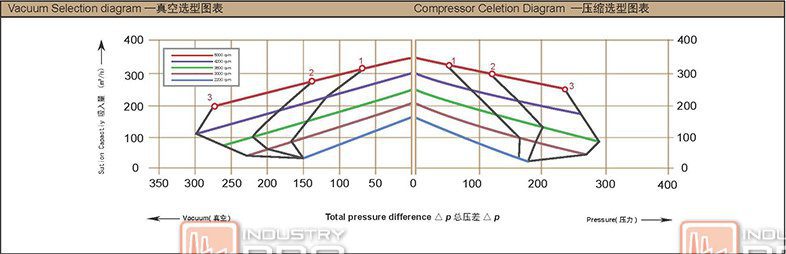

GREENCO 2RB 513-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 1.3 | 210 | -170 | 170 | 64 | 11 | 1x···2110/···2141 (RV-01) |
| 3600 | 1.5 | 255 | -150 | 140 | 70 | |||
| 4200 | 1.75 | 300 | -130 | 100 | 72 | |||
| 5000 | 2.1 | 350 | -70 | 60 | 75 | |||
| 2 | 3000 | 1.6 | 210 | -200 | 190 | 64 | ||
| 3600 | 2.05 | 255 | -220 | 210 | 70 | |||
| 4200 | 2.3 | 300 | -180 | 170 | 72 | |||
| 5000 | 2.6 | 350 | -130 | 120 | 75 | |||
| 3 | 3000 | 2.2 | 210 | -220 | 270 | 64 | ||
| 3600 | 2.55 | 255 | -260 | 290 | 70 | |||
| 4200 | 3.0 | 300 | -300 | 270 | 72 | |||
| 5000 | 3.8 | 350 | -2701 | 240 | 75 |
GREENCO 2RB 533-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 2.2 | 270 | -220 | 230 | 65 | 12 | 2x···2110/···2141 (RV-01) |
| 3600 | 2.55 | 330 | -260 | 250 | 71 | |||
| 4200 | 3.0 | 390 | -270 | 250 | 73 | |||
| 5000 | 3.8 | 460 | -230 | 220 | 76 |

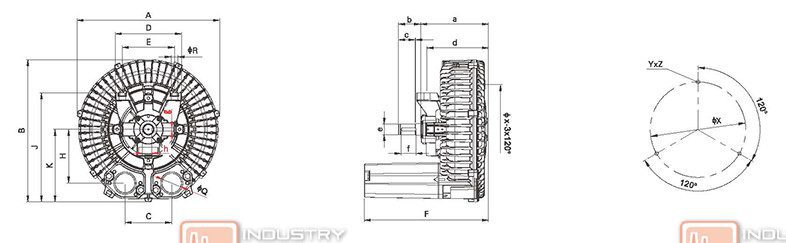

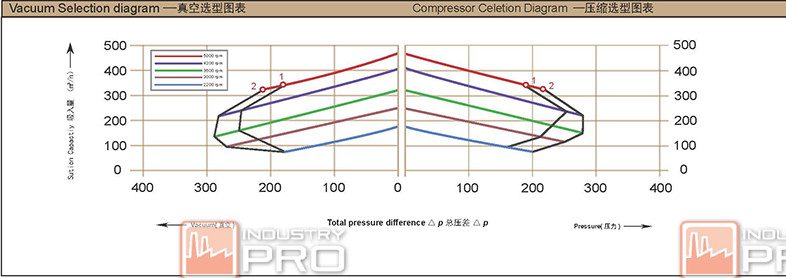

GREENCO 2RB 613-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 2.2 | 265 | -220 | 220 | 65 | 14 | 1x···2110/···2141 (RV-01) |
| 3600 | 2.55 | 315 | -250 | 240 | 71 | |||
| 4200 | 3.0 | 400 | -240 | 250 | 73 | |||
| 5000 | 3.8 | 480 | -180 | 190 | 76 | |||
| 2 | 3000 | 3.0 | 265 | -260 | 250 | 64 | ||
| 3600 | 3.45 | 315 | -280 | 280 | 70 | |||
| 4200 | 4.3 | 400 | -270 | 280 | 72 | |||
| 5000 | 5.0 | 480 | -220 | 220 | 75 |
GREENCO 2RB 713-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet Items x type |
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 2.2 | 320 | -190 | 190 | 69 | 16 | 1x···2110/···2141 (RV-01) |
| 3600 | 2.55 | 380 | -190 | 190 | 72 | |||
| 4200 | 3.0 | 440 | -160 | 160 | 75 | |||
| 5000 | 3.8 | 530 | -130 | 130 | 80 | |||
| 2 | 3000 | 3.0 | 320 | -260 | 270 | 64 | ||
| 3600 | 3.45 | 380 | -240 | 230 | 70 | |||
| 4200 | 4.3 | 440 | -270 | 220 | 72 | |||
| 5000 | 5.0 | 530 | -220 | 210 | 75 | |||
| 3 | 3000 | 4.0 | 320 | -290 | 360 | 64 | ||
| 3600 | 4.6 | 380 | -320 | 310 | 70 | |||
| 4200 | 6.0 | 440 | -340 | 300 | 72 | |||
| 5000 | 6.9 | 530 | -300 | 270 | 75 |

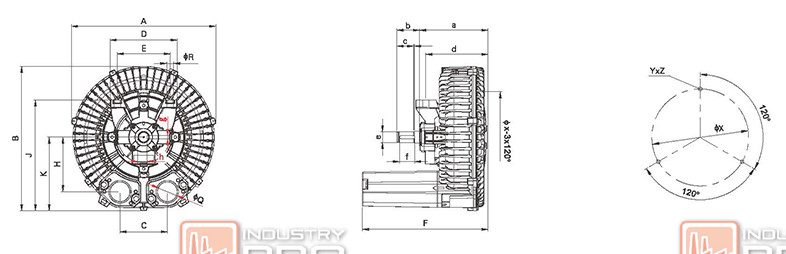

GREENCO 2RB 733-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet |
| Items x type | ||||||||
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 2.2 | 420 | -1801 | 170 | 70 | 18 | 2x···2110/···2141 (RV-01) |
| 3600 | 2.55 | 500 | -160 | 150 | 73 | |||
| 4200 | 3.0 | 580 | -140 | 130 | 76 | |||
| 5000 | 3.8 | 660 | -120 | 120 | 81 | |||
| 2 | 3000 | 3.0 | 420 | -220 | 200 | 70 | ||
| 3600 | 3.45 | 500 | -200 | 170 | 73 | |||
| 4200 | 4.3 | 580 | -180 | 170 | 76 | |||
| 5000 | 5.0 | 660 | -150 | 150 | 81 | |||
| 3 | 3000 | 4.0 | 420 | -260 | 290 | 70 | ||
| 3600 | 4.6 | 500 | -260 | 260 | 73 | |||
| 4200 | 6.0 | 580 | -260 | 260 | 76 | |||
| 5000 | 6.9 | 660 | -260 | 240 | 81 |

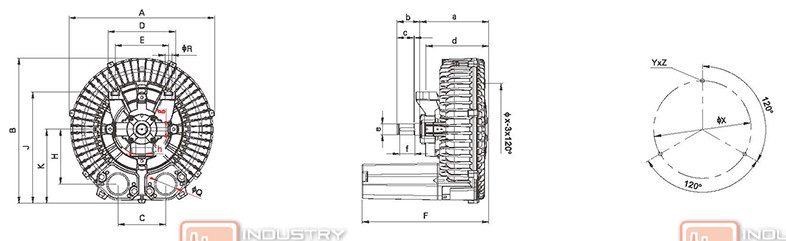

GREENCO 2RB 813-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet |
| Items x type | ||||||||
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 4.0 | 530 | -200 | 200 | 73 | 38 | 1x···4740/···4840 (RV-01) |
| 3600 | 4.6 | 620 | -160 | 160 | 75 | |||
| 4200 | 6.0 | 720 | -150 | 150 | 78 | |||
| 5000 | 6.9 | 830 | -140 | 140 | 84 | |||
| 2 | 3000 | 5.5 | 530 | -300 | 300 | 73 | ||
| 3600 | 6.3 | 620 | -300 | 280 | 75 | |||
| 4200 | 7.5 | 720 | -280 | 260 | 78 | |||
| 5000 | 8.8 | 830 | -220 | 210 | 84 | |||
| 3 | 3000 | 7.5 | 420 | -320 | 430 | 73 | ||
| 3600 | 8.6 | 620 | -350 | 400 | 75 | |||
| 4200 | 10.0 | 720 | -320 | 370 | 78 | |||
| 5000 | 12.0 | 830 | -270 | 330 | 84 |
GREENCO 2RB 833-1HY99
| NO | Rated Speed | Rated Power | Maximim Air flow | Maximim vacuum | Maximim pressure | Sound-level | Weight approx | Vacuum rellet |
| Items x type | ||||||||
| RPM | KW | m³/h | mbar | mbar | dB(A) | Kg | 2BX | |
| 1 | 3000 | 5.5 | 700 | -200 | 190 | 73 | 42 | 1x···4740/···4840 (RV-01) |
| 3600 | 6.3 | 840 | -180 | 180 | 75 | |||
| 4200 | 7.5 | 980 | -110 | 90 | 78 | |||
| 5000 | 8.8 | 1140 | -10 | 10 | 84 | |||
| 2 | 3000 | 7.5 | 700 | -270 | 260 | 73 | ||
| 3600 | 8.6 | 840 | -270 | 260 | 75 | |||
| 4200 | 10.0 | 980 | -250 | 220 | 78 | |||
| 5000 | 12.0 | 1140 | -240 | 180 | 84 |
